ELM327 OBDII Scanner
With kw902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
Konnwei KW902 ELM327 bluetooth OBD2 OBD-II Car Auto Diagnostic Scan Tools is a one of our ELM327 OBDII Scanner Tools, you can buy Konnwei KW902 ELM327 bluetooth OBD2 OBD-II Car Auto Diagnostic Scan Tools from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

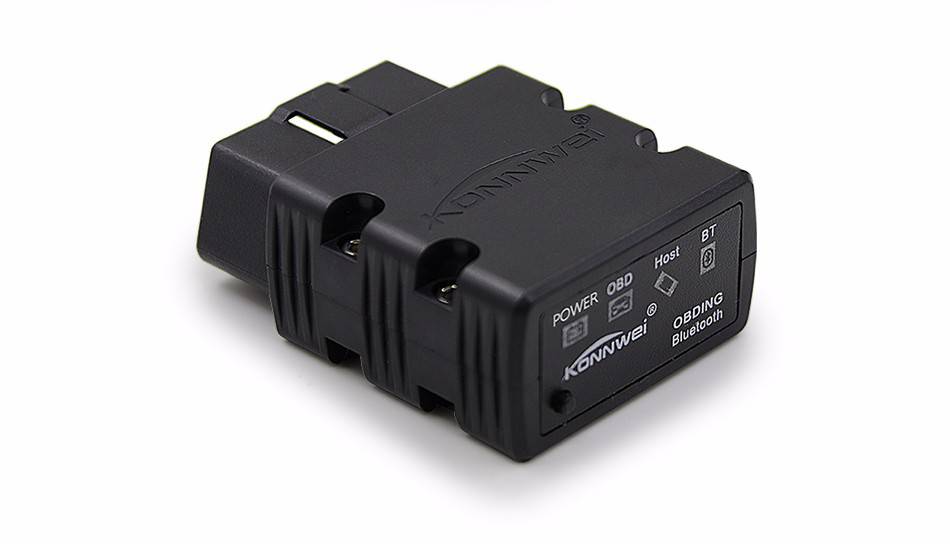

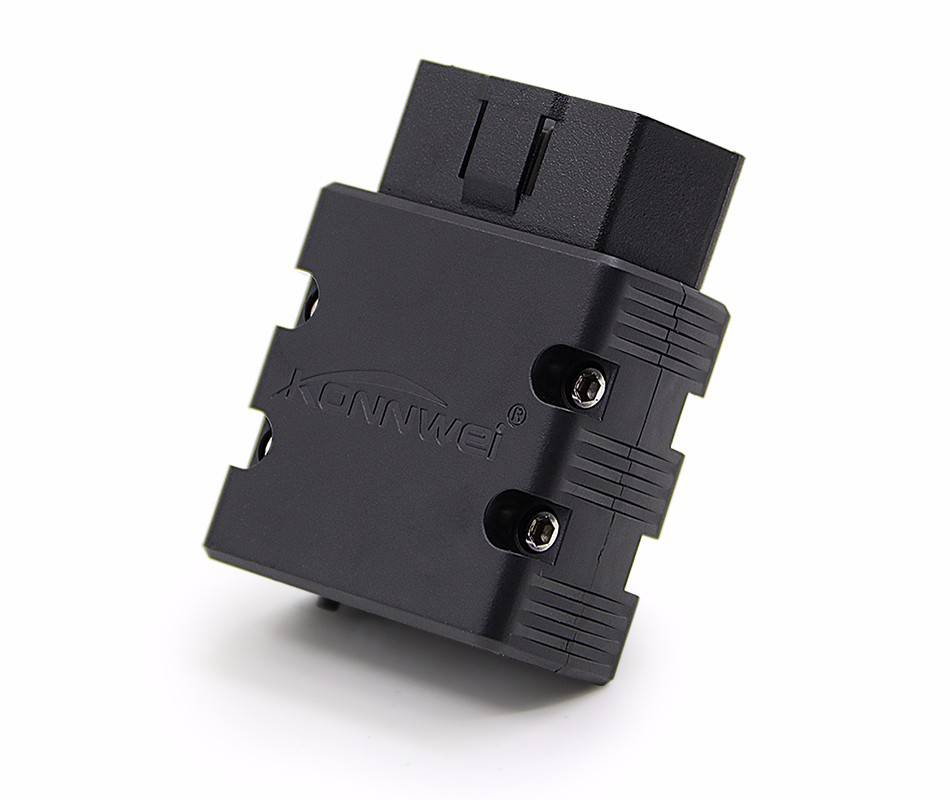

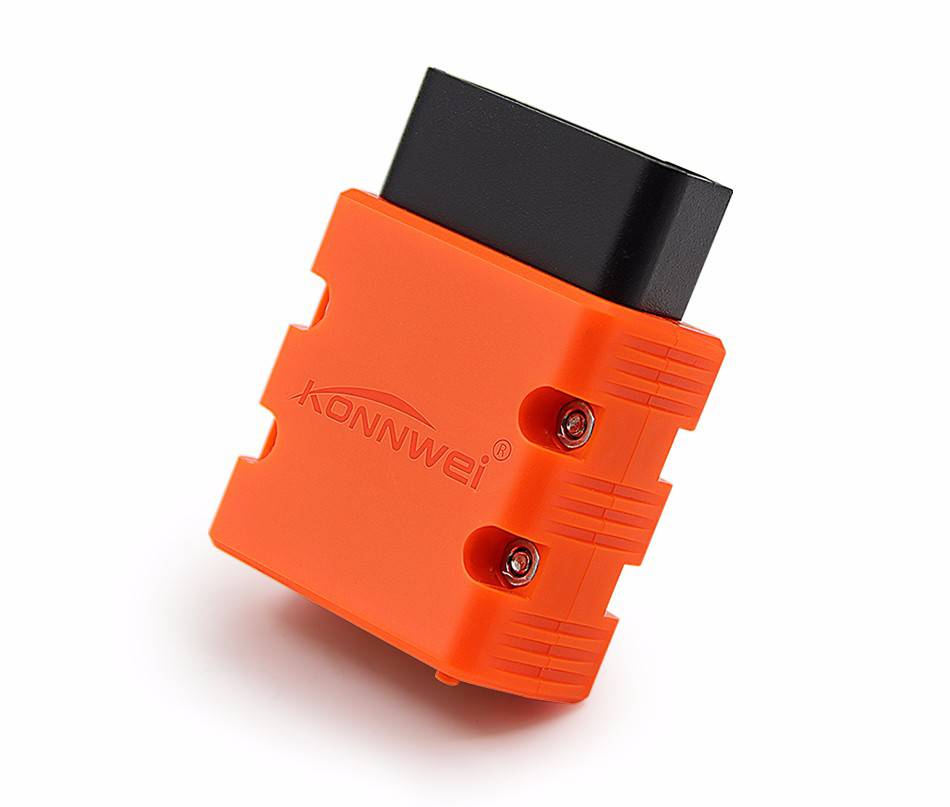

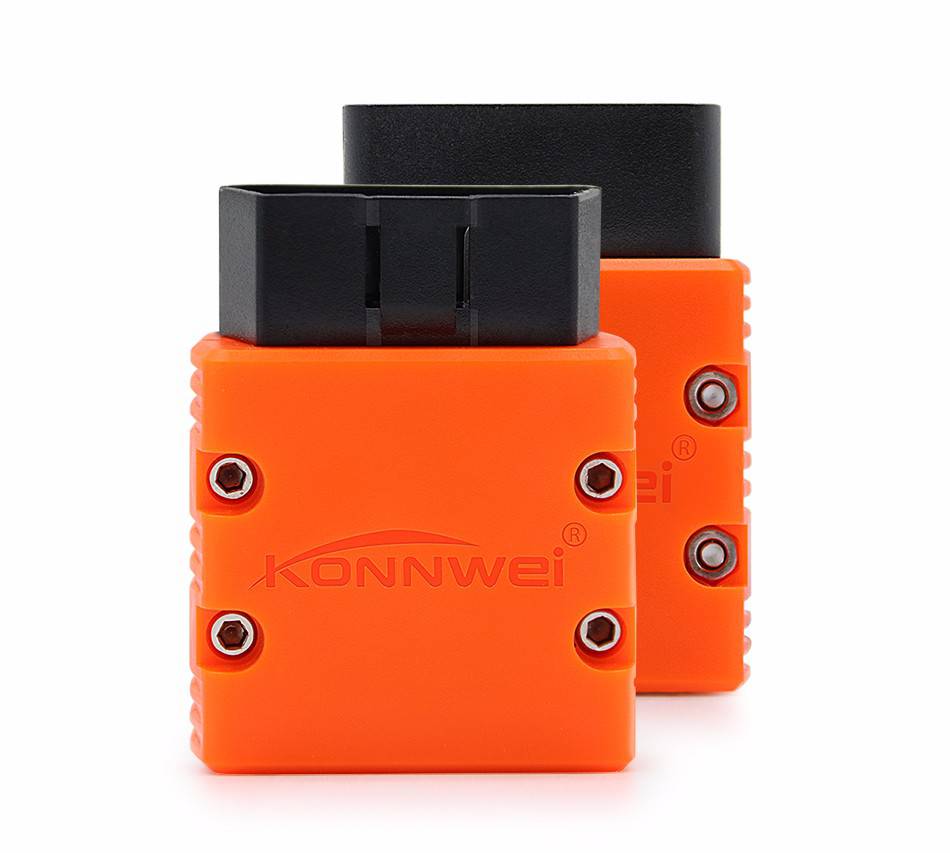

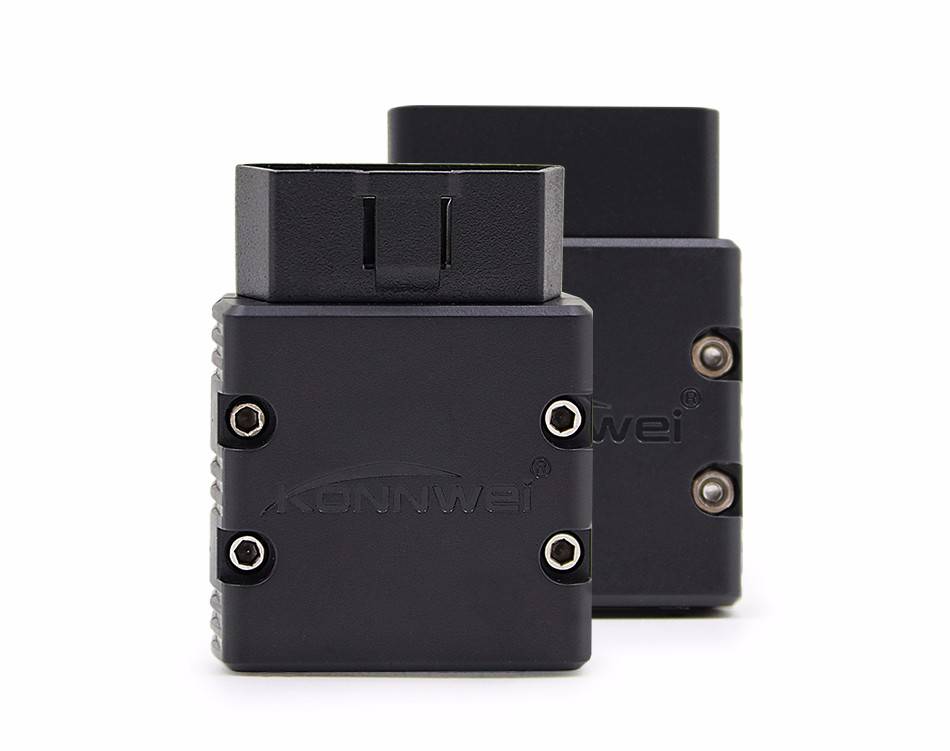

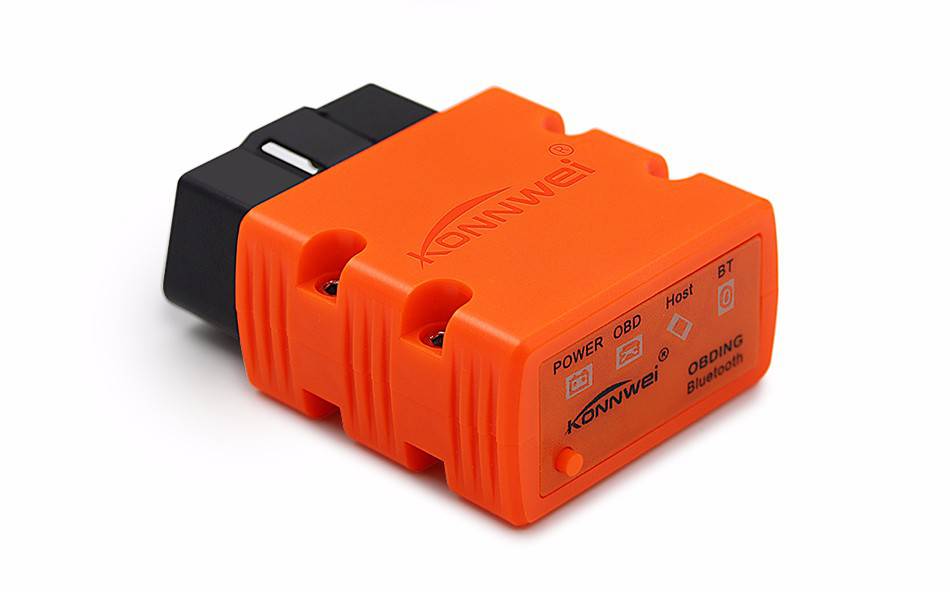

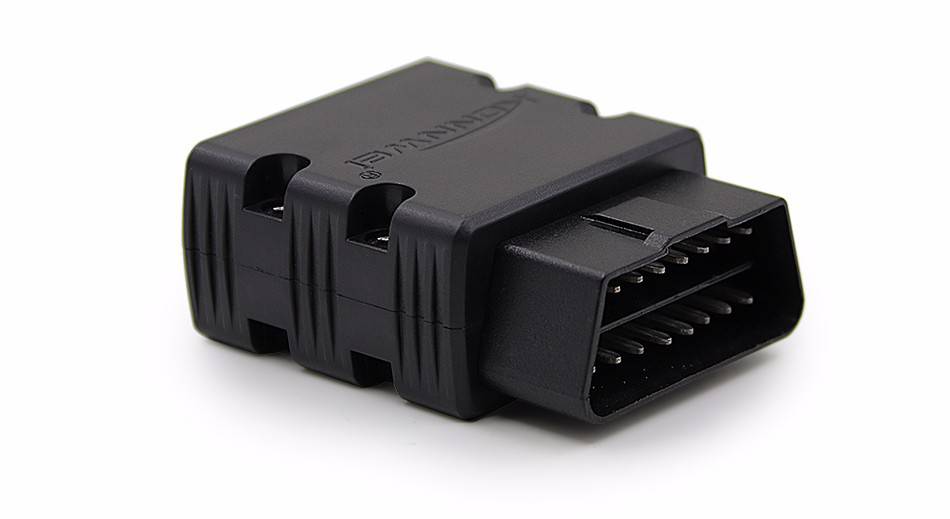

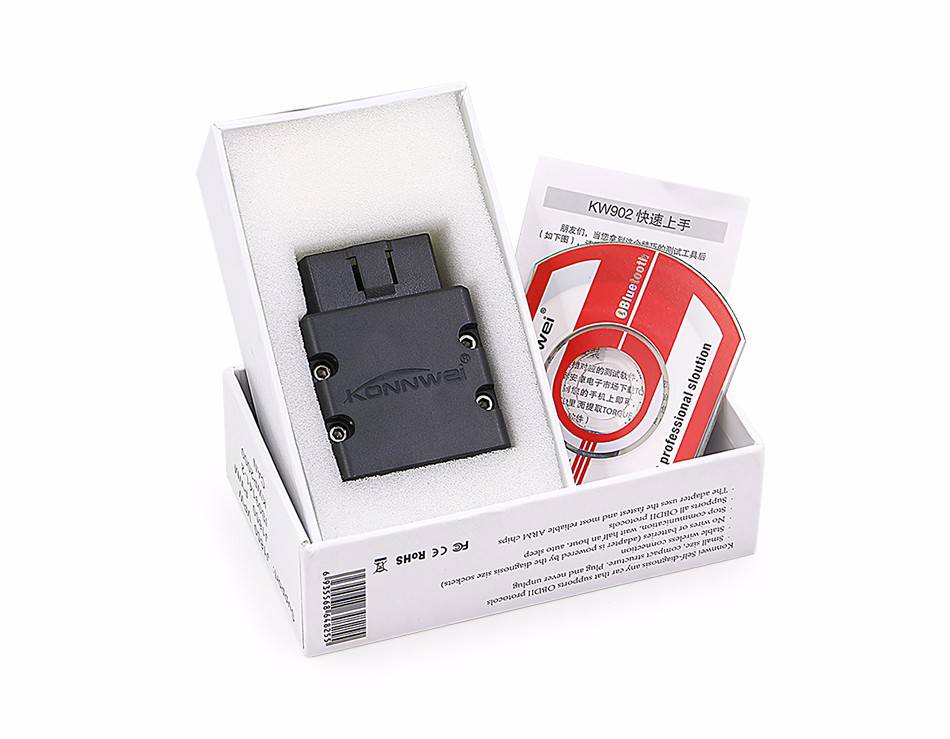

images of Konnwei KW902 ELM327 bluetooth OBD2 OBD-II Car Auto Diagnostic Scan Tools
Features of KW902 Super MINI ELM327 :
- Supply voltage(VDD):12V
- Work temperature range: -20 ~ +70C
- Storage temperature range:-40 ~ +125C
- RF sensitivity(Basic Rate): -85db
- Modulation Mode:GFSK
- Frequency Range:2402 ~ 2480MHZ
- Transmission Range:10M
- Bluetooth Profile:SPP
- UART Params:38400,8,n,1
- Small size, compact structure. Plug and never unplug
- Stable wireless connection
- No wires or batteries (adapter is powered by the diagnosis size sockets)
- Stop communication, wait half an hour, auto sleep
- Supports all OBDII protocols
- The adapter uses the fastest and most reliable ARM chips
The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:
- Measure the fuel consumption.
- Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
- Turn off the MIL (signal Check engine).
- Download data to external media in a variety of formats for later printing.
- Record various parameters, display graphics in real time, and more.
With kw902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
kw902 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)Go to Buy: Konnwei KW902 ELM327 bluetooth OBD2 OBD-II Car Auto Diagnostic Scan Tools
