FLK02
FLEX is an innovative tool for mechatronic workshops that fully supports the latest developments in the automotive tuning and repair market. This kit includes everything you need to get started as a new user.
2025 Magic Motorsport FLEX ECU & TCU Programmer Full Hardware Kit and Master Version Software Package is a one of our FLK02 Tools, you can buy 2025 Magic Motorsport FLEX ECU & TCU Programmer Full Hardware Kit and Master Version Software Package from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of 2025 Magic Motorsport FLEX ECU & TCU Programmer Full Hardware Kit and Master Version Software Package
Flex is an innovative tool for mechatronic workshops that fully supports the latest developments in the automotive tuning and repair market. It is fully customizable and can be upgraded at any time through the SW and is available in Master or Slave configurations. Provides tuning and flashing solutions for cars, trucks, motorcycles, large trucks/Buses and even industrial equipment! Allows recovery to OEM specs for many ECU and TCU solutions and cloning of ecus.
See the full supported vehicle and controller list here - including Duplicatable ECUs/TCUs and specific services available :
https://www.magicmotorsport.com/flex/vehicle-and-services-list/
Features:
Package includes: FLEX ECU & TCU Programmer Full Hardware Kit and Master Version Software Package
1. ECU & TCU Programmer: Program cars, motorcycles, and trucks in OBD, Bench, and Boot modes.
2. Over 25,000 Supported Vehicles( Click to check the list)
3. Intuitive Software and constant updates.
4. Easy to Use: Everything in a few clicks,choose the vehicle brand and model or enter the ECU or TCU code, the software will automatically show available connection modes.
5. Magic Lock your work is safe: you can deny access to files saved in engine units to those who are not authorized.
6. Datalogger function: allowing you to collect up to 60,000 parameters in real-time such as pressure, torque, air, fuel, exhaust gas temperature, speed, rpm, and much more.
7. Limited Lifetime Warranty: Get a limited lifetime warranty on the product including the repair or replacement service.
8. Tech Support: Get a limited lifetime warranty on the product including the repair or replacement service.
FLEX HW kit for New Users
Use your FLEX to esily reprogram, update or modify the software of most engine control units directly through the vehicle's OBD socket. A simple Internet connection gives you access to all the potential that the tool offers you. For more advanced or repair work, use the FLEXBox module to program the control unit in BDM, Bootloader, JTAG, and AUD modes. The device detects any connection or communication errors thanks to its cutting-edge design.
Configure FLEX
FLEX tailored to your work. Customize FLEX, choose the software packages and accessories that best suit your business. The first year's subscription fee is included in the purchase of a new tool to increase your productivity and bring your business up to the next level by adding this new customizable technology to your workplace.
Endless Evolution
With Flex, you have everything you need to start working in the chiptuning world and boost your business with many services and solutions in your mechatronic workshop.
Working with Flex is extremely easy: choose the vehicle brand and model or enter the ECU or TCU code, the software will automatically show available connection modes.
With Flex, you have everything under control thanks to the Datalogger function, allowing you to collect up to 60,000 parameters in real-time such as pressure, torque, air, fuel, exhaust gas temperature, speed, rpm, and much more.
Also, with Magic Lock your work is safe: you can deny access to files saved in engine units to those who are not authorized.
Full Flex software package Master
SKU FLS0.5M
Flex Full Master is the more complete software package for your Flex. Get the most out of the programmer for ECUs and TCUs to upgrade your business.
Main features:
- all Magicmotorsport solutions for ECU and TCU
- the totality of programming modes available
- the possibility of create your own Slave network
The Full Flex Software Package Master includes:
Software Flex ECU OBD + Bench
Software Flex TCU OBD + Bench
Software Flex Motorola MPC5xx
Software Flex Nexus MPC5xxx
Software Flex Renesas SH7xxxx
Software Flex Siemens C165/166/167
Software Flex ST10F2xx
Software Flex NEC
Software Infineon
The Master Version includes 300 Green Coins per month to be used for Helpdesk Support.
Recent Update:
Update OBD solution for Continental GPECx, specifically GPEC2, GPEC2A, GPEC3, GPEC4, GPEC4LM engine units.
Add Bench Solution for ZF 9HP48.
Add Vitesco GPEC4LM control units in Boot and OBD.
Add VAG 2.0 TFSI (MG1CS031) OBD.
Add Boot solution for Marelli 11GF engine units.
Unlock and program in OBD mode Bosch MD1CS014 engine units with the latest anti tuning protections.
The ultimate solution for your business
Flex Full Master software package puts at your disposal all the protocols available for the more than 25,000 vehicles supported by Flex, also make you able to program in the three connection modes.
It is the most complete solution to offer more services to your customers and expand into the automotive market.
Flex Full Master also allows you to create your own Slave network which can include up to 99 mechatronics.

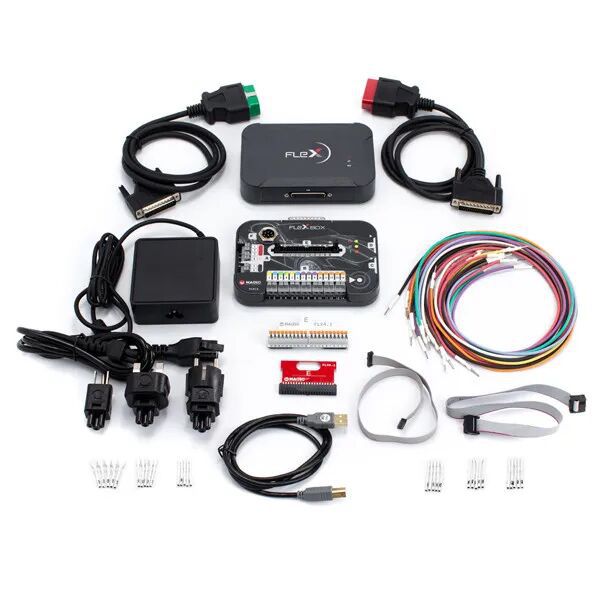

Package includes:
1pc x programmer,
1pc x FLK35 Cabling kit: FLX3.5 color coded wiring harness
1pc x FLK42 Adapter kit: 6 pcs set of pin adapters to FLX35
1pc x FLX1.1 FLEX Base Module
1pc x FLX1.9 FlexBox Module for FLEX
1pc x FLX2.10 Connection cable OBD: FLEX to CAN/Kline RED
1pc x FLX2.11 Connection cable OBD: FLEX to ENet GREEN
1pc x FLX3.3 Connection cable: FlexBox port C to NEC 7F00 XX
1pc x FLX3.4 Connection cable: FlexBox port D to BDM MPC5xx
1pc x FLX3.9 Connection cable: USB 2.0 AM-BM BLK 1.8m
1pc x FLX4.1 FlexBox port E 40 pin adapter for FLK35
1pc x FLX9.1 FLEX & FlexBox diagnostic adapter
1pc x FLK49 Switch Mode Power Supply for FLEX with plugs
