Honda HDS J2534

For HDS OBD J2534 V2.018.013 OBD2 OBDII Diagnostic Cable Running on ISO Hardware V1.4.1 Standard Obd2 Communication

HDS J2534 for Honda OBD2 Diagnostic Cable is a one of our Honda HDS J2534 Tools, you can buy HDS J2534 for Honda OBD2 Diagnostic Cable from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

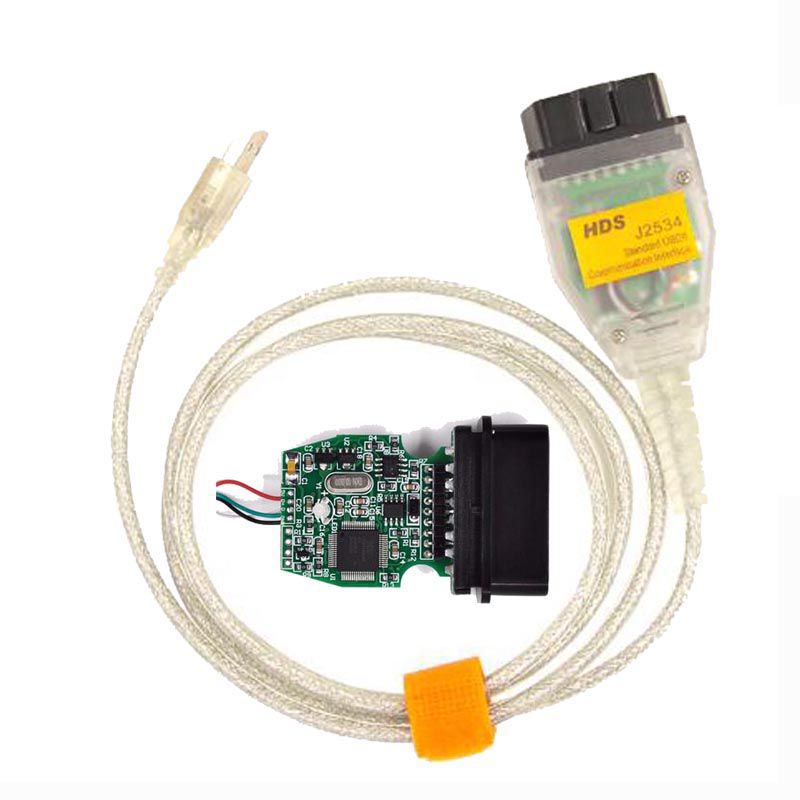

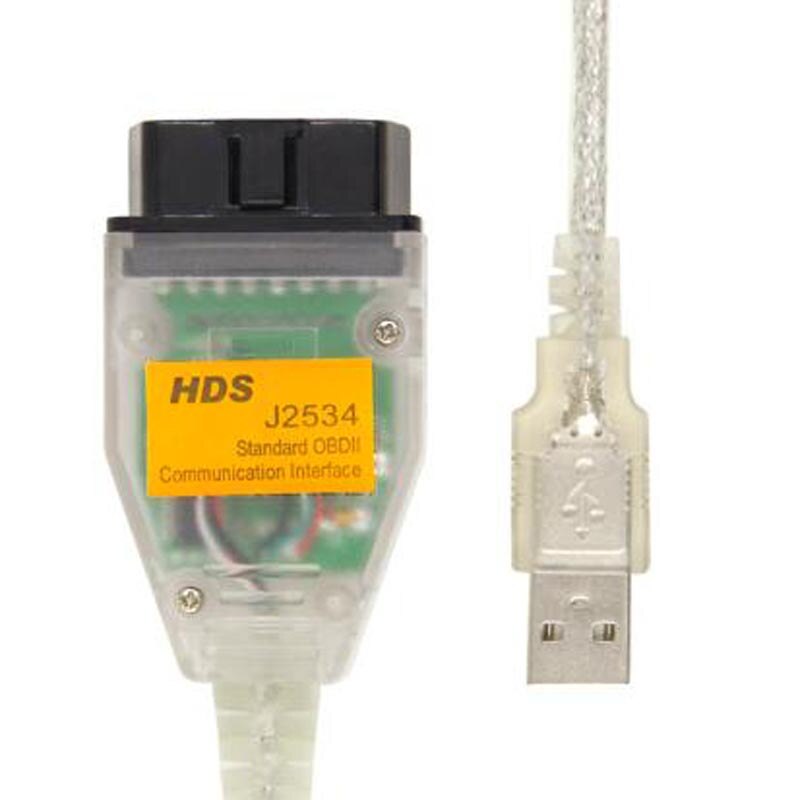

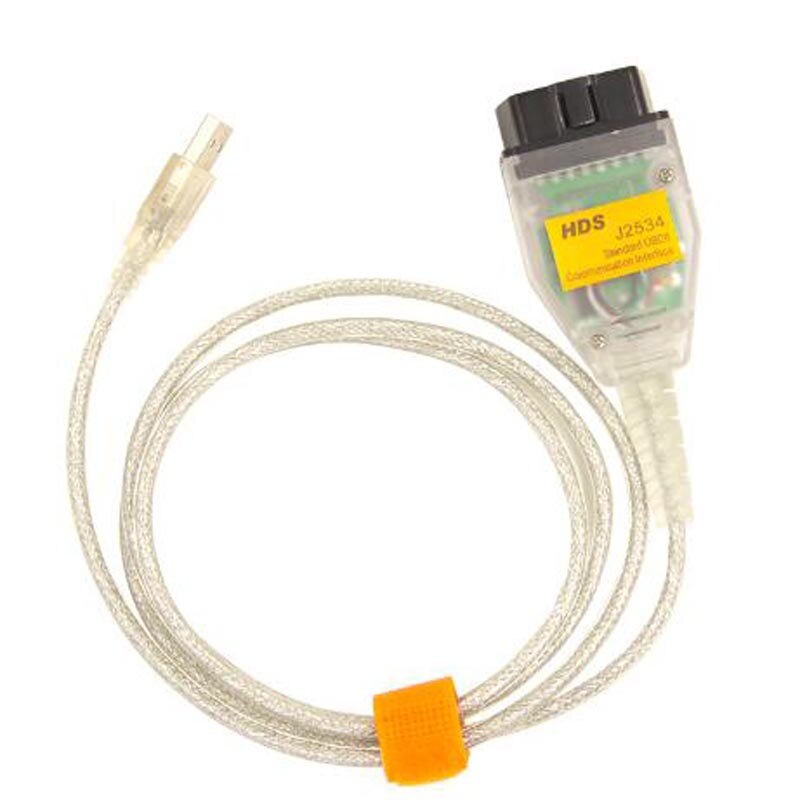

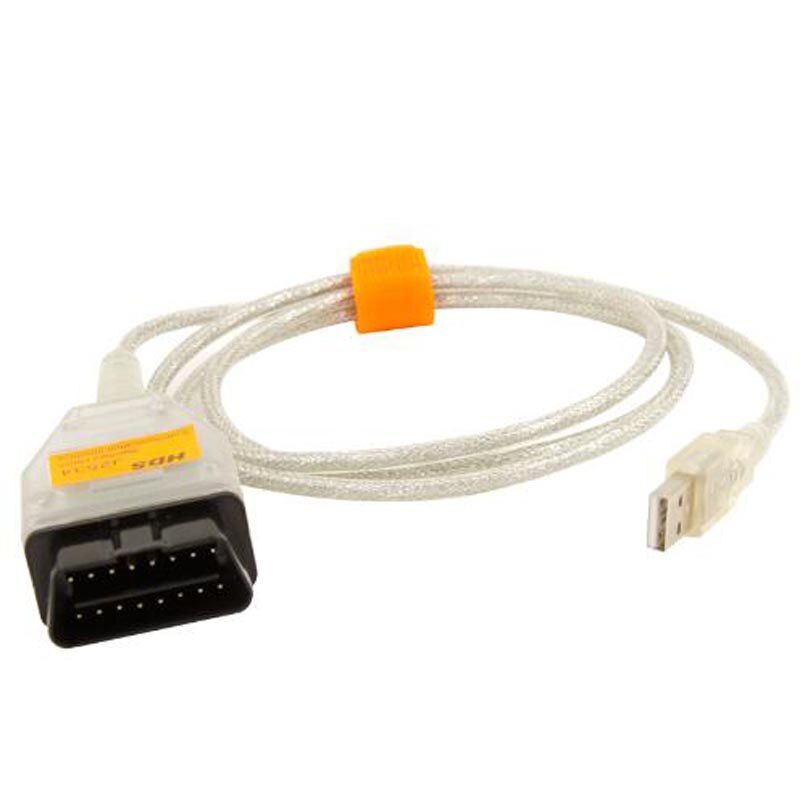

images of HDS J2534 for Honda OBD2 Diagnostic Cable

HDS J2534 for Honda OBD2 Diagnostic CableHDS J2534 for Honda OBD2 Diagnostic CableHDS J2534 for Honda OBD2 Diagnostic CableHDS J2534 for Honda OBD2 Diagnostic CableHDS J2534 for Honda OBD2 Diagnostic CableHDS J2534 for Honda OBD2 Diagnostic Cable

Honda HDS J2534 OBD2 Diagnostic Cable Running on ISO Hardware V1.4.1 Standard OBD2 Communication

This is a low-cost, high-performance vehicle network interface that connects a laptop directly to the Bus Network via the OBD-II connector. HDS J2534 this product to be affordable for Professional Technicians, CarPCs, the aftermarket, and automotive enthusiasts.

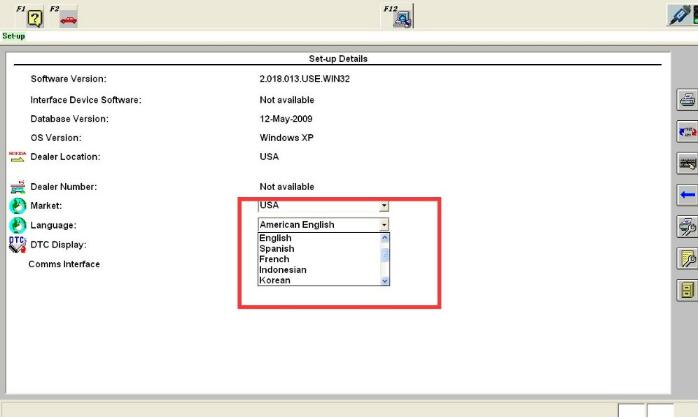

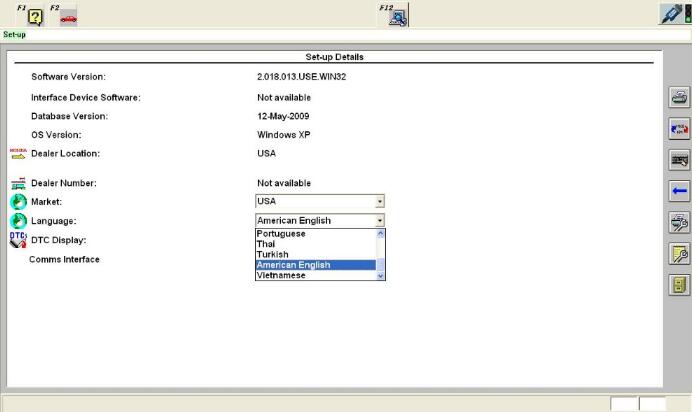

Software Version: 2.018.013

Firmware Version: 1.4.1

Recommendation Operating System: XP 32bit

Applicable models: 2010 and 2010 before

HDS J2534 HDS J2534 HDS J2534

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()

This includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.

Key Features:

Lost cost, high performance pass-thru diagnostic tool for use with PC

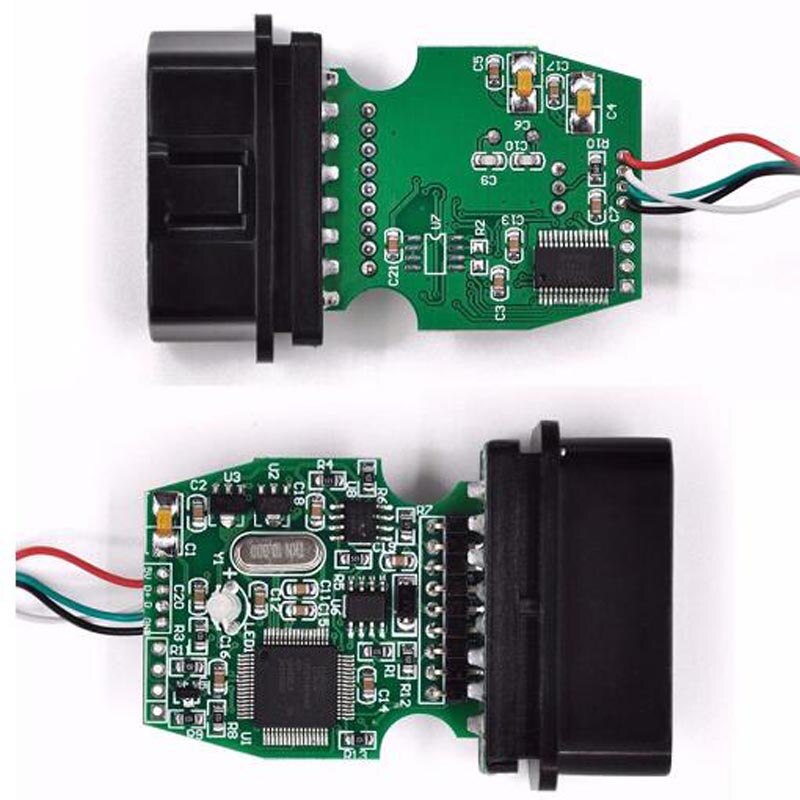

Simple packaging with electronics contained inside the cable

J2534 and J2534-1 compliant device driver

Commercial Range (-30 to +70° C)

Dimensions: 3" x 1.75"

Cable length: 135 cm

Operating Voltage: Bus-powered by USB

Supported List:

Bus Protocols supported by the MFC for Ho-n-da

CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)

KWP2000 (ISO9141 / ISO14230)

Short to Ground pins 1, 9 and 15

VPP +5 Pin 12

Software Options:

The HDS J2534 is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that this uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by it, with more being added all of the time.

PCM--Scan Diagnostics and Data Logging Software

This full version of PCM--Scan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.

PCM--Scan running on ISO and VPW

PCM--S-can running on ISO(M-ISOCAN) or VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including many other automaker brands. By 2008 most vehicles on the road will be CAN based and supported by the ISO/CAN adapter.

API

HDS J2534 also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW tm, C or Visual Basic.

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

HDS J2534

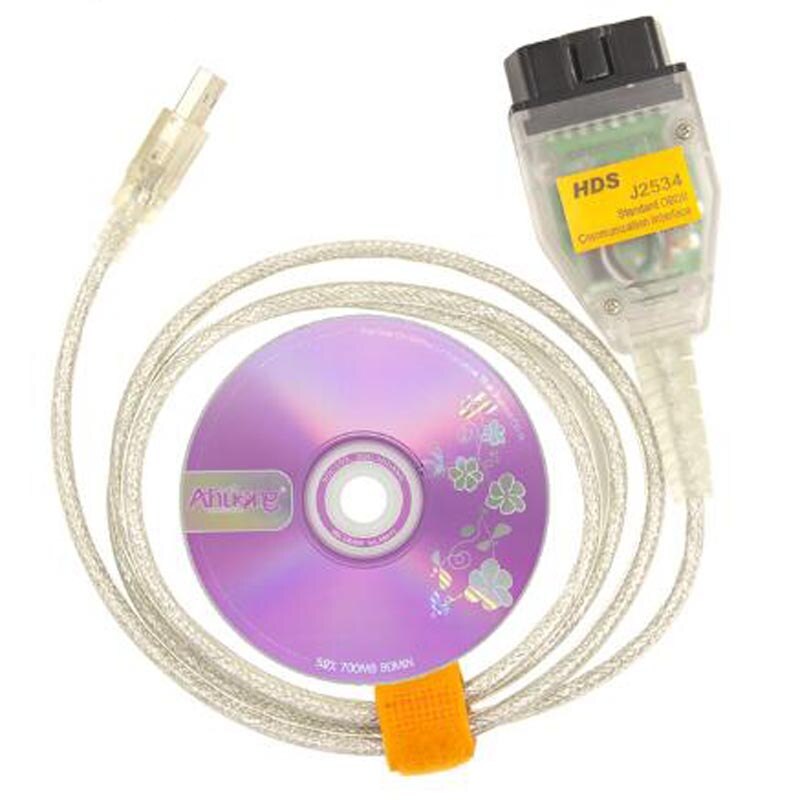

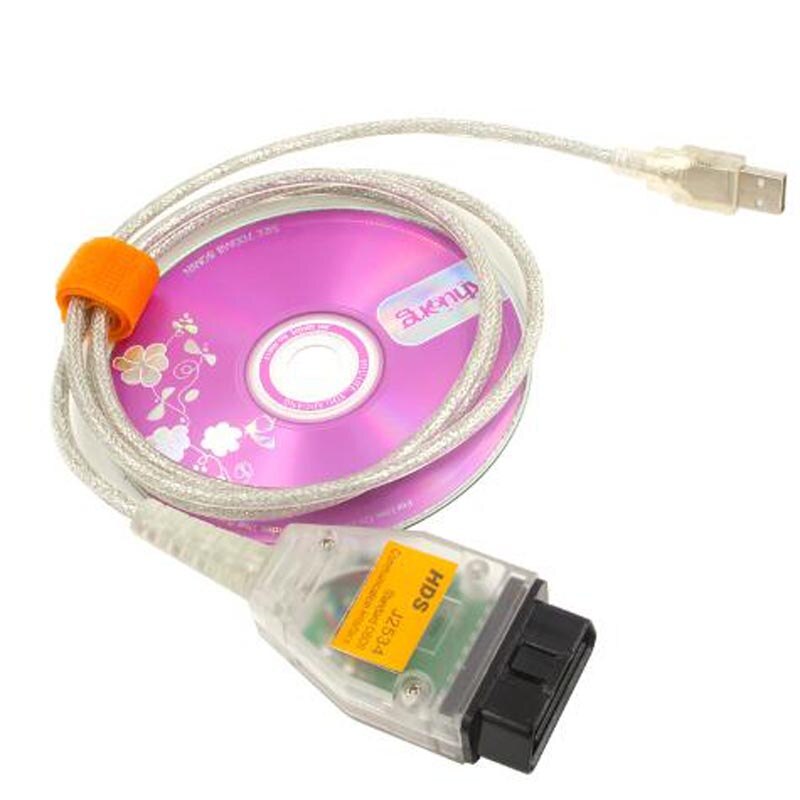

Package includer:

1 x HDS J2534 Cable

1 x Installation CD (J2534 compatible)

aeProduct.getSubject()

Go to Buy: HDS J2534 for Honda OBD2 Diagnostic Cable
