ME 97 ECU

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB, with this package, you can directly write the data to Mercedes ME9.7 ME 9.7 ECU.

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB is a one of our ME 97 ECU Tools, you can buy Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCBMercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB

Mercedes ME9.7 ME 9.7 ECU ECM engine Computer Programming with Renew Cable & V2.25 KTAG EU Online Version Firmware V7.020 Red PCB

With this package, you can read ,write and program new ecu for your car.


Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming with Renew Cable & V2.23 KTAG EU Online Version Firmware V7.020 Red PCB
**************************************************************************************************
Mercedes ME9.7 ME 9.7 ECU ECM engine Computer


Mercedes ME9.7 ME 9.7 ECU ECM engine Computer Compatible with Follow Vehicle Models:
Series Models Chassis NO Engine Model(ME9.7)
C Series C230 203.052 272.920
C Series C280 203.054 272.940
C Series C280 204.054 272.947
E Series E350 211.056 272.964
E Series E280 211.054 272.943
E Series E300 12.054 272.952
E Series E350 207.356 272.961
CLK cars CLK280 209.354 272.940
CLK cars CLK350 209.356 272.960
CLS sports cars CLS350 219.356 272.964
CLS sports cars CLS300 219.354 272.943
SLK sports cars SLK280 171.454 272.942
SLK sports cars SLK350 171.456 272.963
S Series S350 221.56 272.965
S Series S4100 221.195 272.974
M Series ML350 164.186 272.967
M Series ML300 164.182 272.945
R Series R350 251.165 272.967
R Series R300 251.154 272.945
GLK cars GLK300 204.981 272.984
GLK cars GLK350 204.987 272.971

Meanwhile, compatible with all series of 273 engine 4.6L 4633CC V8/ 5.5L5641CC V8
Support online programming, renewing ECU repeatedly with a special cable instead of dismantling the shell

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer
Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer PCB 1
Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer PCB 2

*************************************************************************
Mercedes Benz ECU ME9.7/272-273/ Renew Cable For KTM100 KTAG ECU Programming

Usage:
When you have the original ECU data, just use this renew cable to connect to KTAG to write to Mercedes ME9.7 ME 9.7 ECU.
With this cable, you won't need to open the ECU to write data anymore.

***********************************************************************
V2.25 KTAG EU Online Version Firmware V7.020 K-TAG Master with Red PCB No Tokens Limitation

What's new with Ktag Master fw V7.020 sw V2.25?

-Many encrypted new car models works I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc.
-100+ ECU types added
-Software version: V2.25
-Hardware version: V7.020

Multi-Language available: Italian Deutsch English French Portuguese Spanish
Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
Support both Car, Motorcyle and Truck ECU Programming
Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN


Update: By CD or Download link only. (I can give you a link to download newest version of ktag software)

Using tips:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Tip (Very important): During operation, disable the internet connection; otherwise the software may get damaged.

1. What's main different between Our K-TAG KTAG 7.020 and others?
-Mainly Different : Our K-TAG 7.020 add a GPT cable to support GPT Functions
( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )
-No reset button ,no USB Dongle. NO Tokens Limited!!!
-REAL VERSION OF KTAG 7020 EURO ALL ACTIVATED VERSION!!!

2. What is the advantage of KTAG V7.020 over than other EUC Chip Tuning Tools in the market?
-Supports online full protocols ,fully activated,without tokens limited.
-There are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so KTAG is needed,as the new generation ktag Master,ktag 7.020 is the best choice.
-K-TAG 7.020 can work For Toyota Hilux kun26 and new added 100+ ECU types & supports new car models e.g. Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276 ECU, Toyota 76F, etc.
-KTAG V7.020 add a cable with GPT Functions.
-Online operation supported.
-Best PCB With Murata filters.
-Multi-Languages Supported .
-With a great performance and tested by many tuners and was regarded as one of the best ECU Programmer for trucks ,heavy duty,boat.
-No tokens limited, no years limited.
-No USB Dongle,No reset button.

3. KTAG v7.020 Red PCB ECU Tuning Tool Install/User Note
-The KTAG you received will with latest software 2.25 and hardware 7.020 ,so Never update it online.We will send you free update link in future.
-We don't sell SD card and chips alone,sorry.
-We offer free Transdata dimsport software for Ktag 6070,but no install help in this free gift.
-Our KTAG 7.020 can be used online,no reset button need.No tokens limited

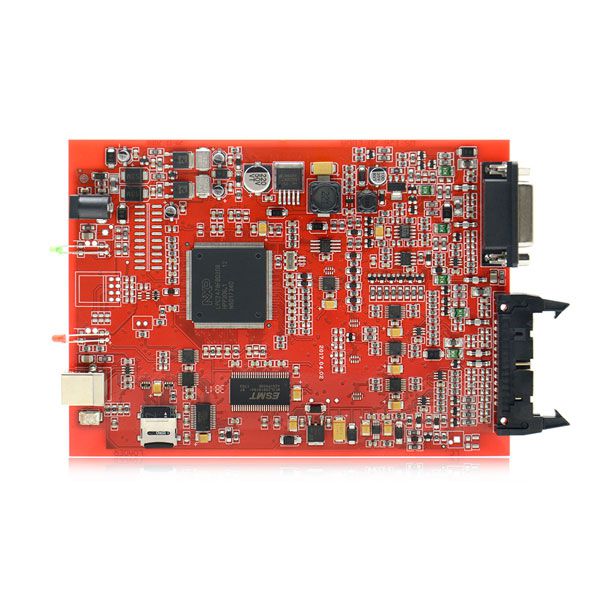

KTAG 7.020 Red PCB OBD2 Manager Tuning Kit PCB Display

K-TAG red PCB EU Version PCB Component!

1. use of imported Japanese Murata NFE61PT472C1H9L filters
2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor
3. 3.7x 27E = ON Semiconductor NUP2105LT1G
4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor
5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c
6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer
Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer

Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer

Package includes:

1pc x Mercedes ME9.7 ME 9.7 ECU ECM Engine Computer Programming
1pc x Mercedes Benz ECU ME9.7/272-273/ Renew Cable
1 x KTAG 7.020 Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
