OBDSTAR P003 Kit working with OBDSTAR IMMO series tablets (eg:OBDSTAR X300DP Plus, X300 Pro4 ), is designed for reading BOSCH ECU data, CS, Pincode ect., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.. More models are in development.

OBDSTAR P003 Kit Highlights:

1.Portable Design
2.Easy Operation
3.High Performance

OBDSTAR P003 Kit Supported ECU list:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

OBDSTAR P003 Kit Overview:

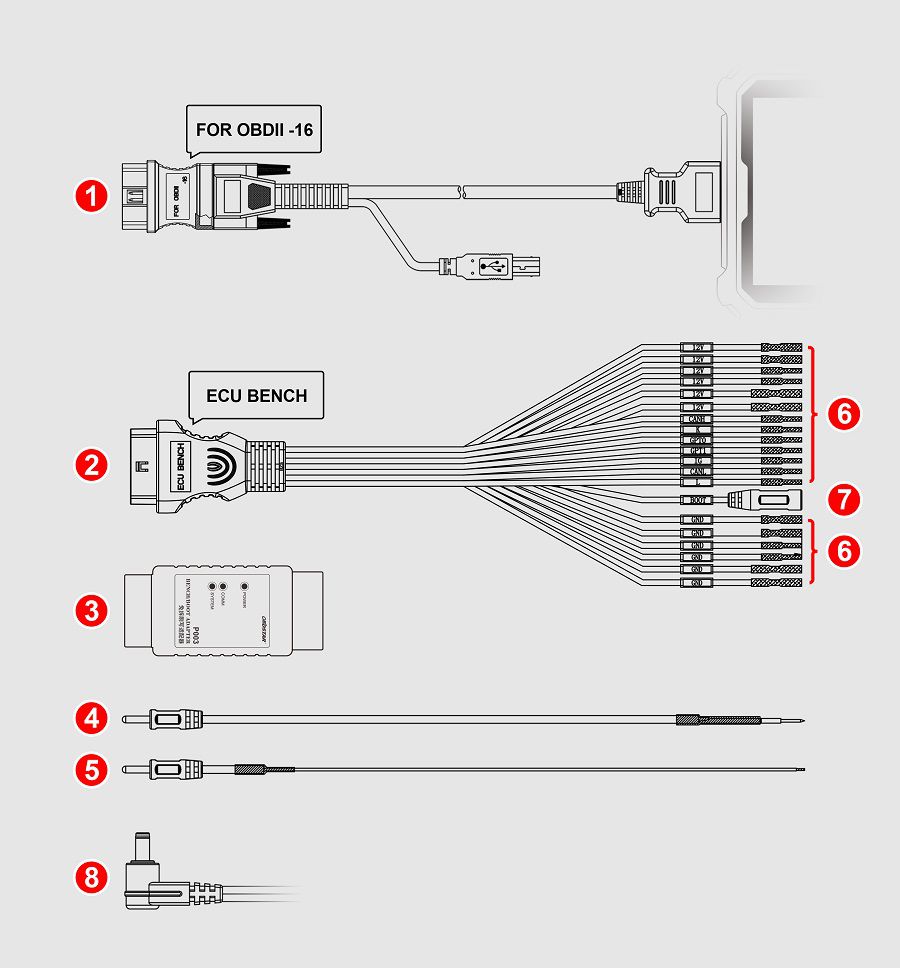

1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)
3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power

OBDSTAR P003 KIT P003 Adapter

Connecting Methods:

BENCH MODE
Step 1:Connect 1,2,3 together as pic below;
OBDSTAR P003 KIT P003 Adapter
Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 12V power with diagnostic device;
Step4: read data on diagnostic device.

BOOT MODE
Step 1: Connect 1, 2, 3 together as pic below;
OBDSTAR P003 KIT P003 Adapter
Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 7 with 4 or 5 and connect it to ECU;
Step4:connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

Specifcations:
Voltage 12V
Weight 100g
Dimension 113*75*31mm

OBDSTAR P003 KIT Package:

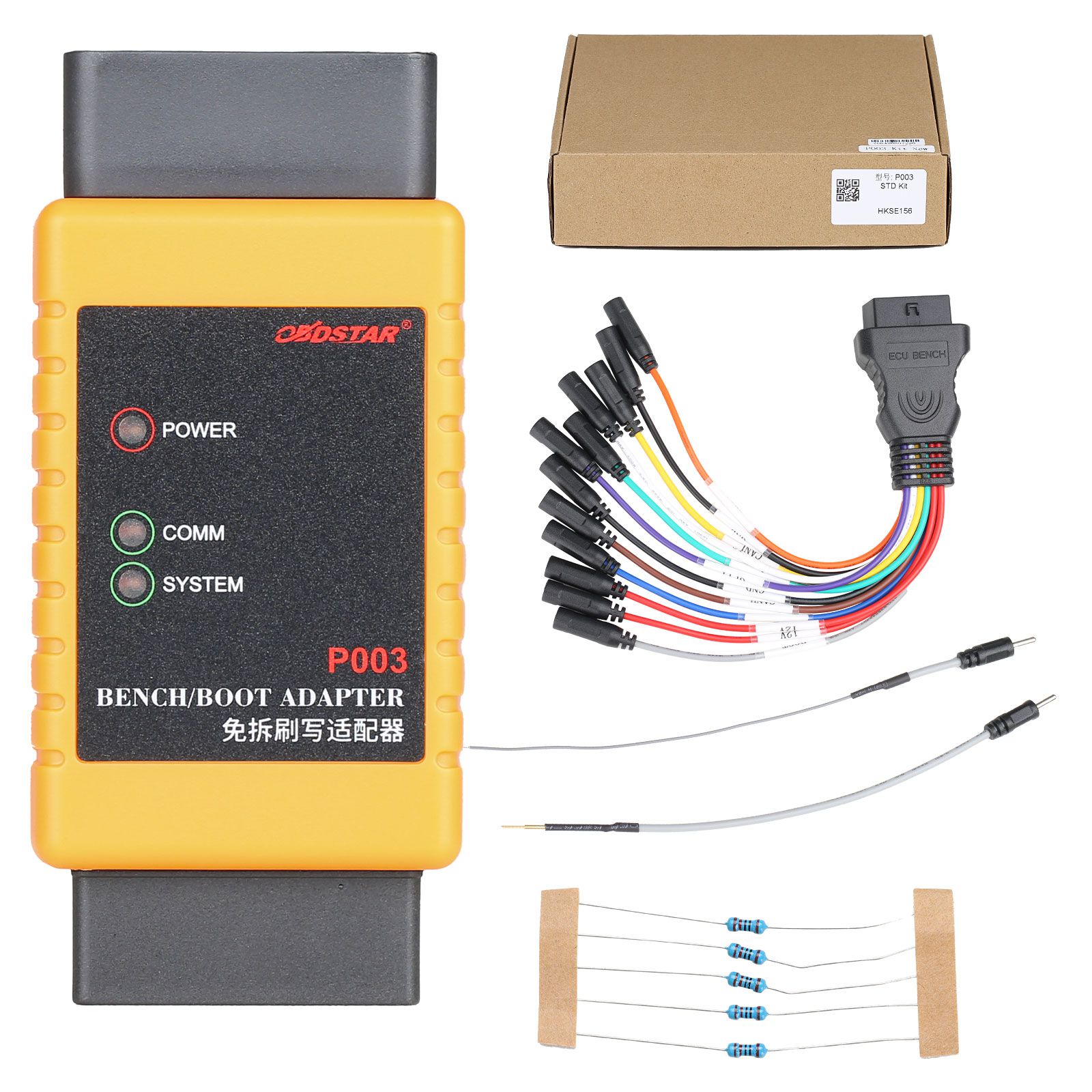

1. P003 adapter
2. ECU BENCH cables

OBDSTAR P003 KIT P003 Adapter

Go to Buy: OBDSTAR P003 KIT P003 Adapter with ECU Bench Cables Working With OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP
