5.5 Inch PDA Priting Machine PDA Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse

5.5 Inch PDA Priting Machine PDA Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse is a one of our PDA Priting Machine Tools, you can buy 5.5 Inch PDA Priting Machine PDA Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of 5.5 Inch PDA Priting Machine PDA Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse

5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse5.5 Inch PDA Priting Machine PDA  Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse

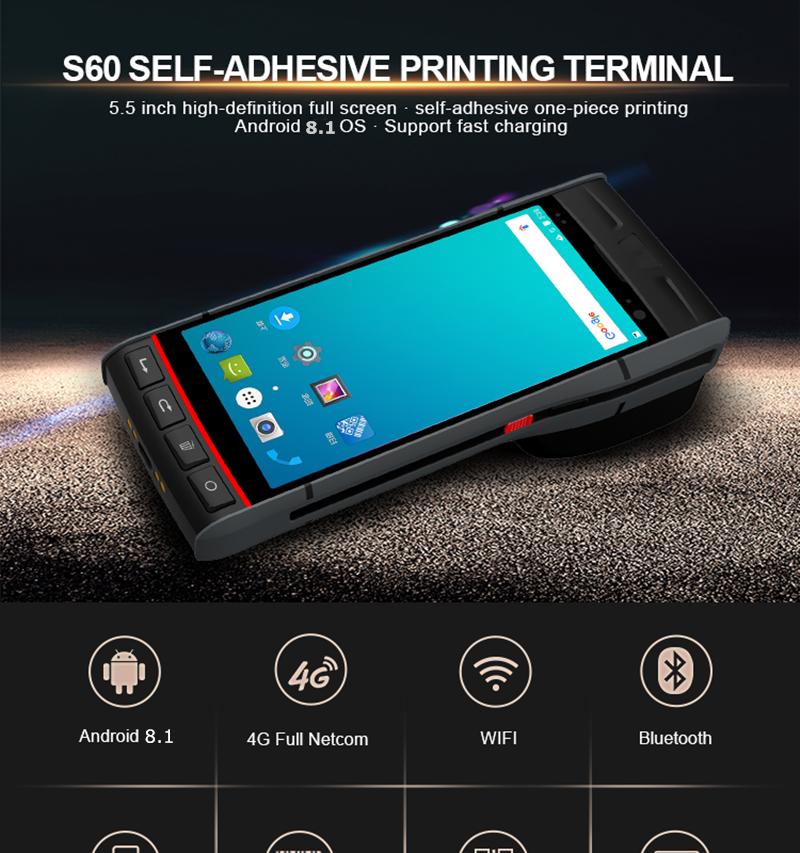

5.5 Inch PDA Barcode Scanner NFC RFID Thermal Printer Handheld Terminal Android 8.1 Wifi Bluetooth For Logistic Warehouse

Note:This device with NFC reader .If you don't need it can place order COBD27289 . It will help you save cost .

Feature:

- thermal/ label /sticker printing paper roll is 35 x 58mm.

- printing speed is 70mm/s

- Front Camera is 2MP colorful camera while rear camera 13MP HD camera

- 2D scanning honeywell or 1D Newland EM 1365

- PSAM 2pcs, micro SIM 1pcs,TF x 1pc

- Battery is 3.8v 5600MAh

- CPU is Cortex-A53 Quad-core 64bit 2.0GHz

- ROM + RAM: 2GB+16GB

5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner

Product Detail Data Sheet

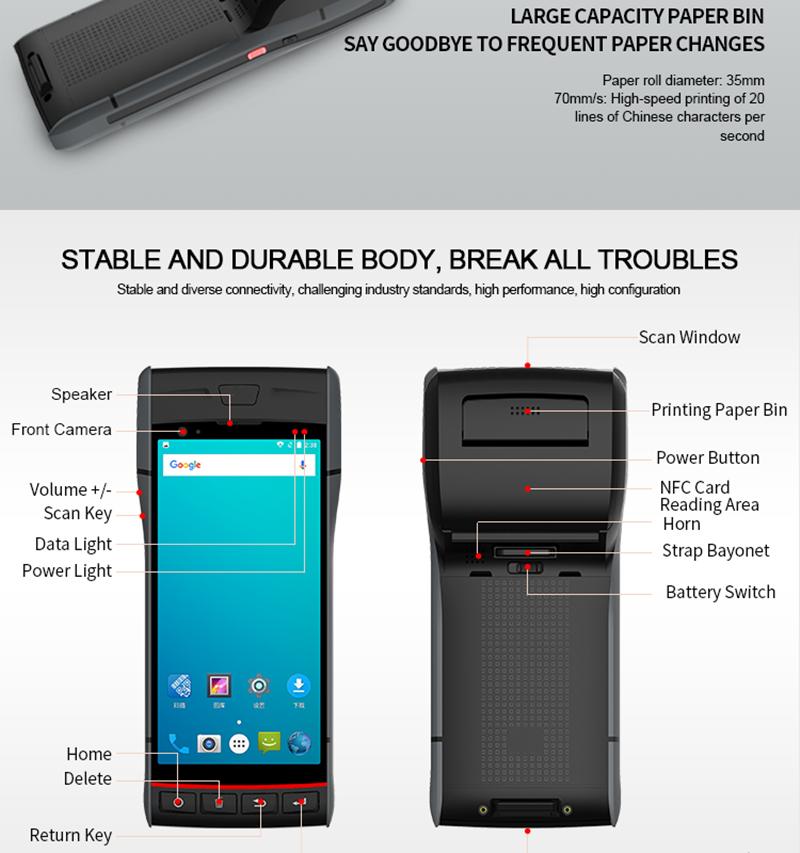

Structural Parameter

Dimensions

Dimensions 177mm×72mm×(23.7-48.8)mm

Weight

<500g

Display Screen

5.5 inch IPS color display with resolution 720*1440

Expand Port

SIM card, micro SD (TF) Card

Communication Interface

Type-C USB

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input,Function key×4

Battery Capacity

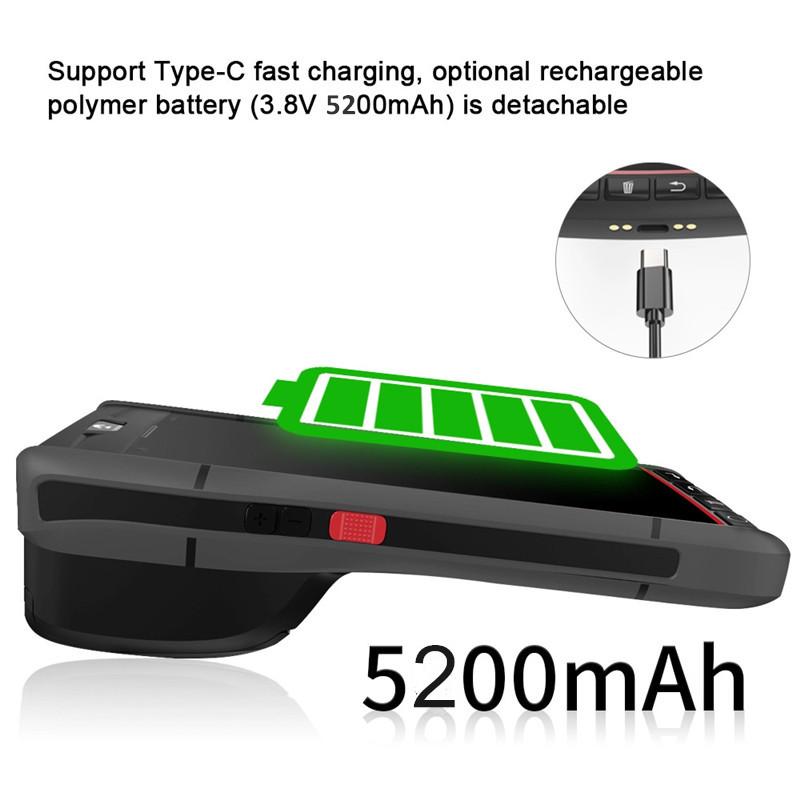

Rechargeable polymer battery (3.8V 4200mAh) removable

Frequency

8ohm 1W speaker

Key

Silicone button

Performance Parameter

OS

Android 8.1, 9.0

CPU

Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor

RAM

2G/3G/4G RAM

Flash ROM

Standard 16G/32G/64G NAND Flash Storage

micro SD/TF port (Max up to 128G)

Data Communication

WI-FI

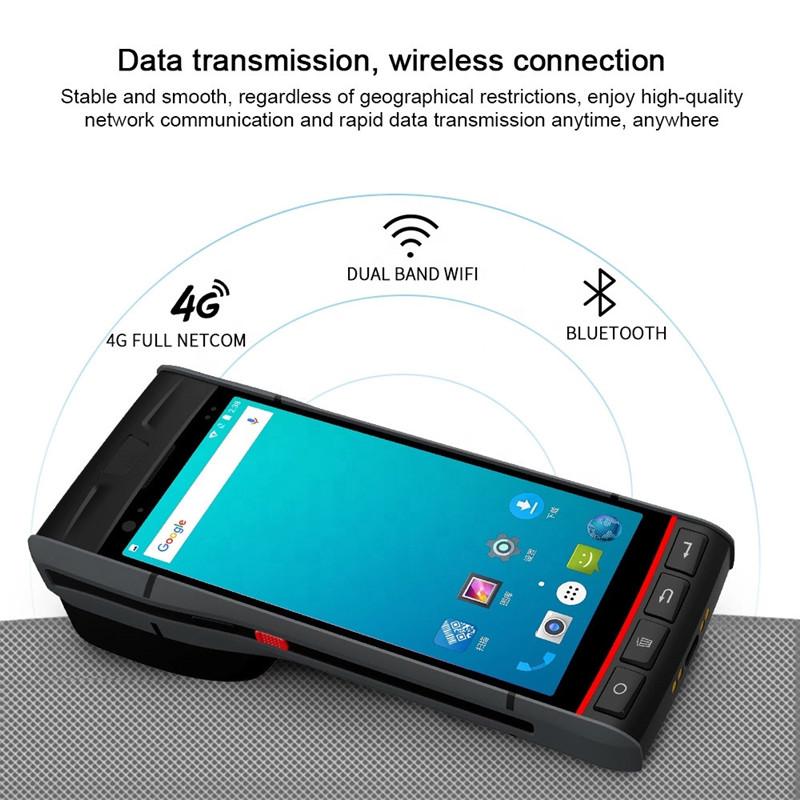

Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol

FDD/TDD-LTE 4G

FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41

WCDMA 3G

WCDMA(850/900/1900/2100MHz)

GSM 2G

GSM(850/900/1800/1900MHz

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters

Standard Modules

Rear camera

13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

GNSS

Support GPS, Galileo, Glonass, Beidou

Operating Environment

Operating

-20°C to 55°C

Storage Temperature

-40°C to 70°C

Environment Humidity

5%RH-95%RH(no condensation)

Drop Specifications

6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature

Roll Specifications

500×0.5m rolling for 6 sides

Sealed Environment

IP66

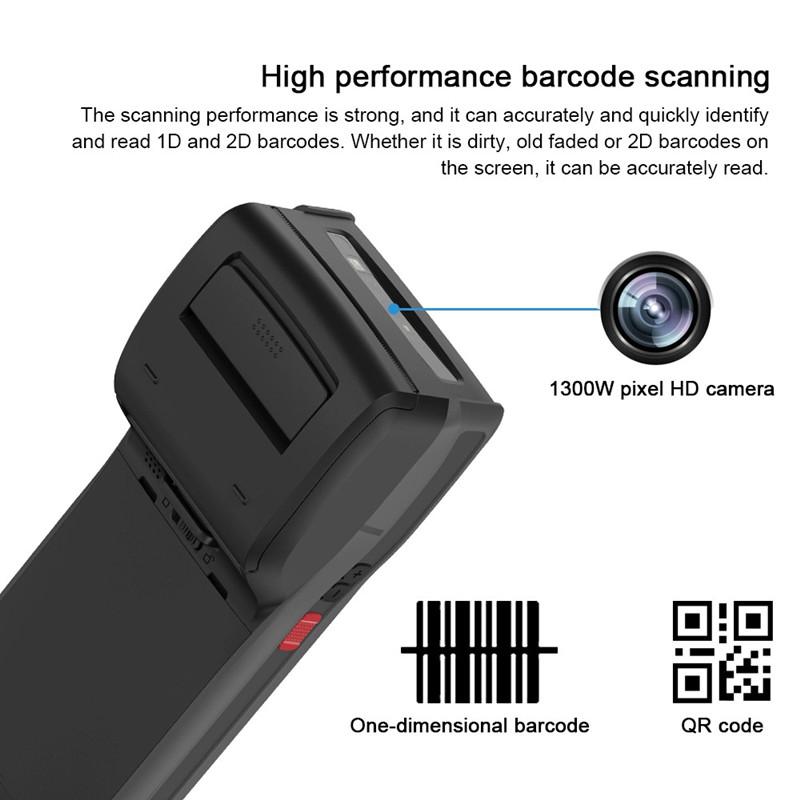

2D CMOS (OPTIONAL)

CMOS Scanner

Honeywell N3601 Honeywell N6603

The Sensor Resolution

752(level)×480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

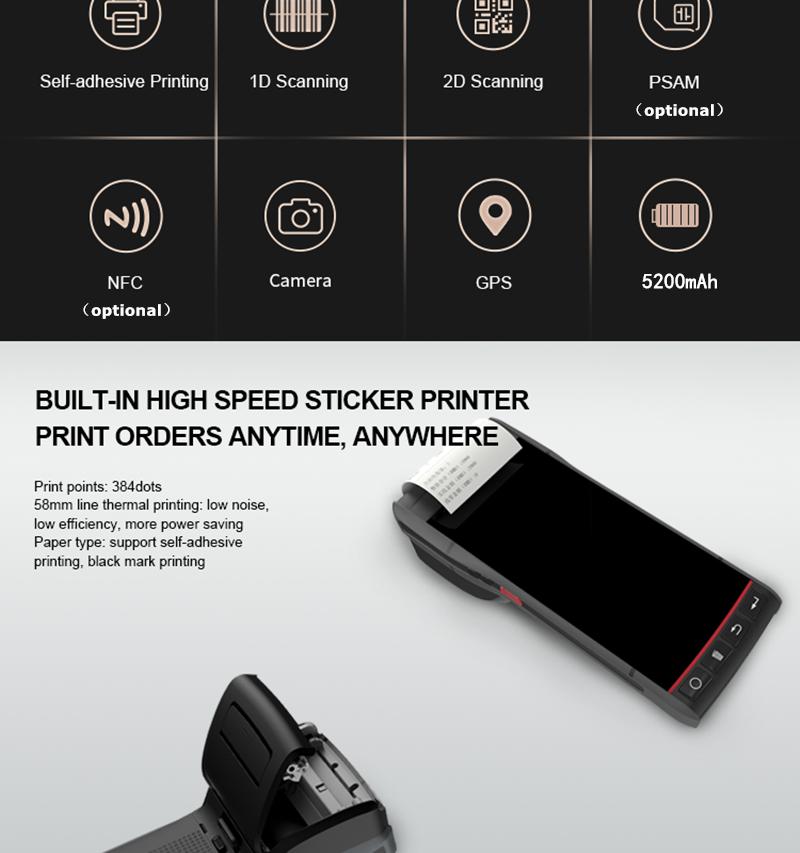

Thermal sticker printer

Printing speed

70mm/s

Print points

384 dots

Paper width

58mm

Paper diameter

35mm

Paper type

Support for Sticker / label Black mark printing

NFC Reader (Optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Range

2-5cm

5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner5.5 Inch PDA Priting Machine PDA  Barcode Scanner
