New TPMS Bluetooth 4.0 Tire Pressure Monitor System 4 Internal/External Sensor Works Android/iOS Mobile Phone APP Display
New TPMS Bluetooth 4.0 Tire Pressure Monitor System 4 Internal/External Sensor Works Android/iOS Mobile Phone APP Display is a one of our Tire Pressure Monitor System Tools, you can buy New TPMS Bluetooth 4.0 Tire Pressure Monitor System 4 Internal/External Sensor Works Android/iOS Mobile Phone APP Display from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of New TPMS Bluetooth 4.0 Tire Pressure Monitor System 4 Internal/External Sensor Works Android/iOS Mobile Phone APP Display
TPMS Bluetooth 4.0 With 4 Sensor Tire Pressure Monitor System
Works For Android/iOS Mobile Phone

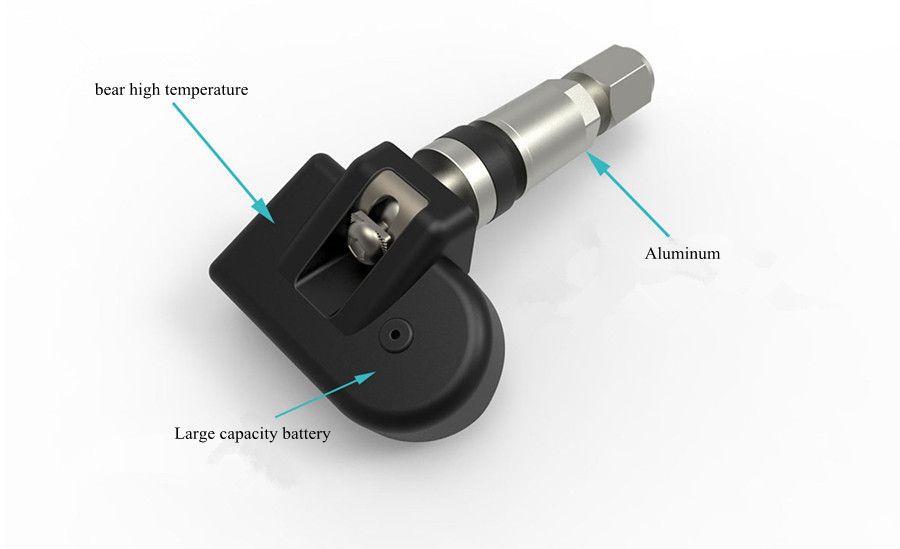

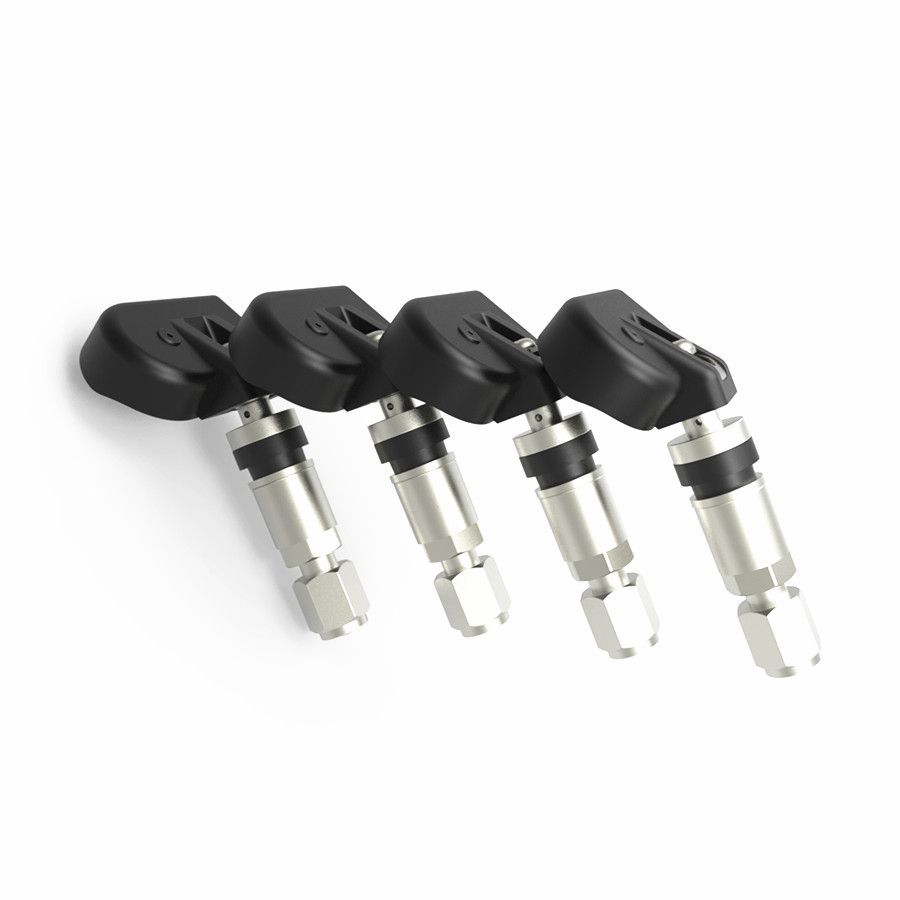

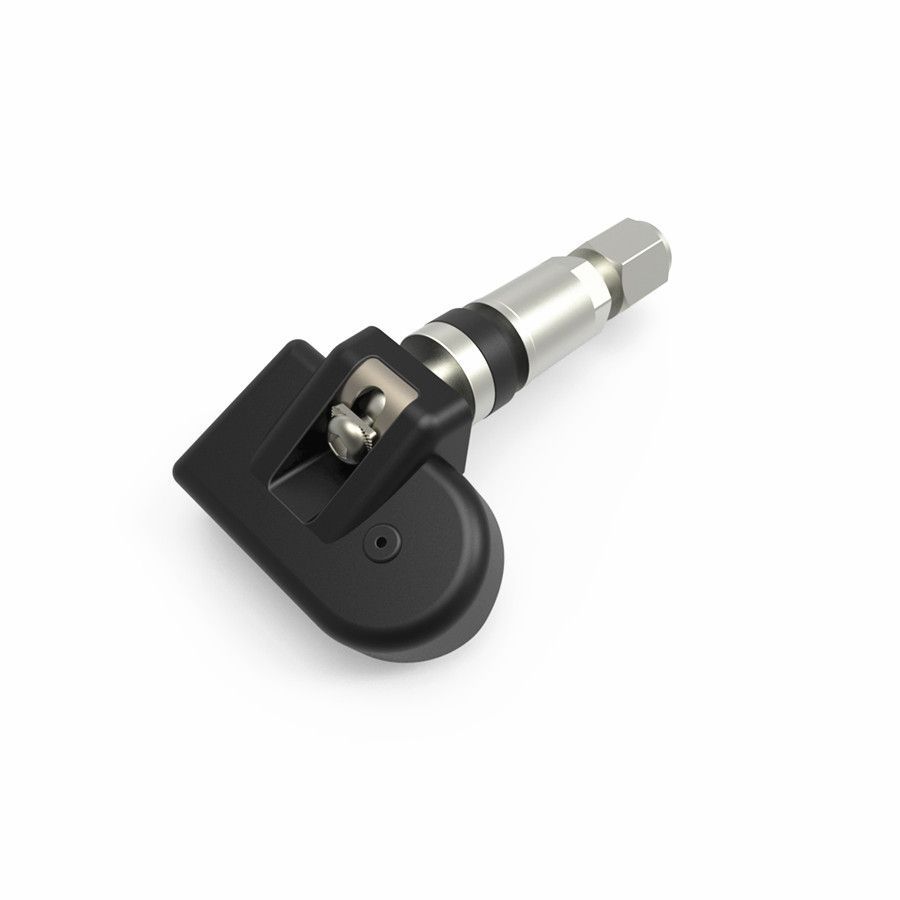

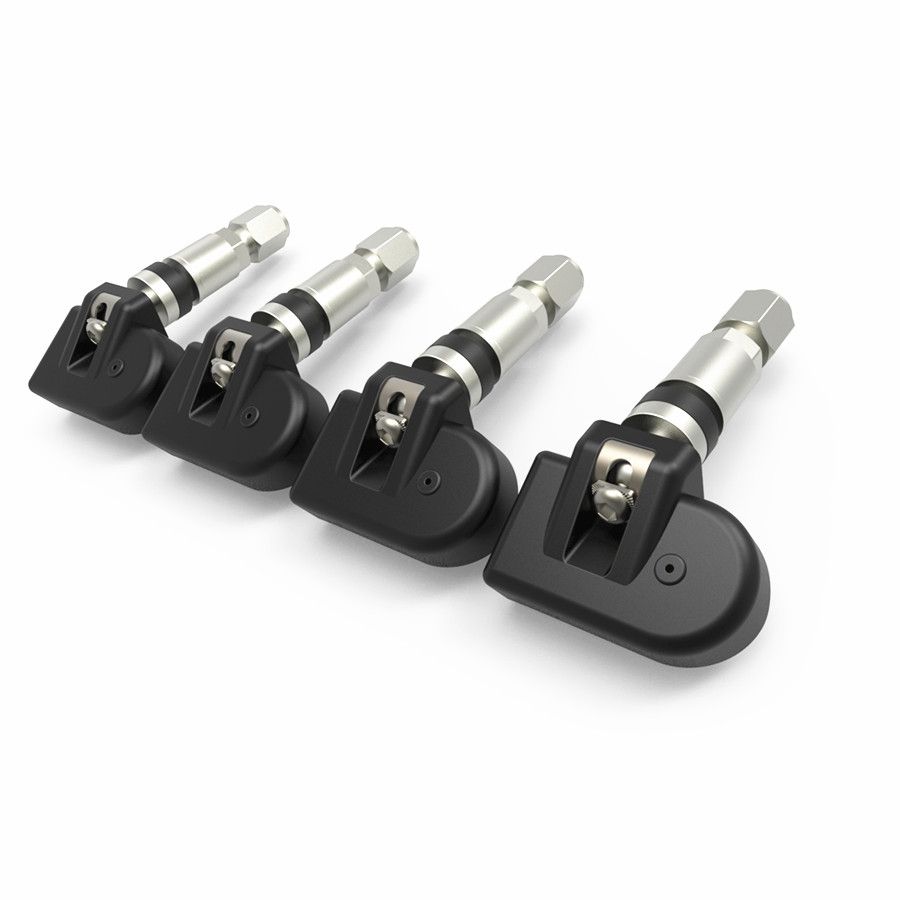

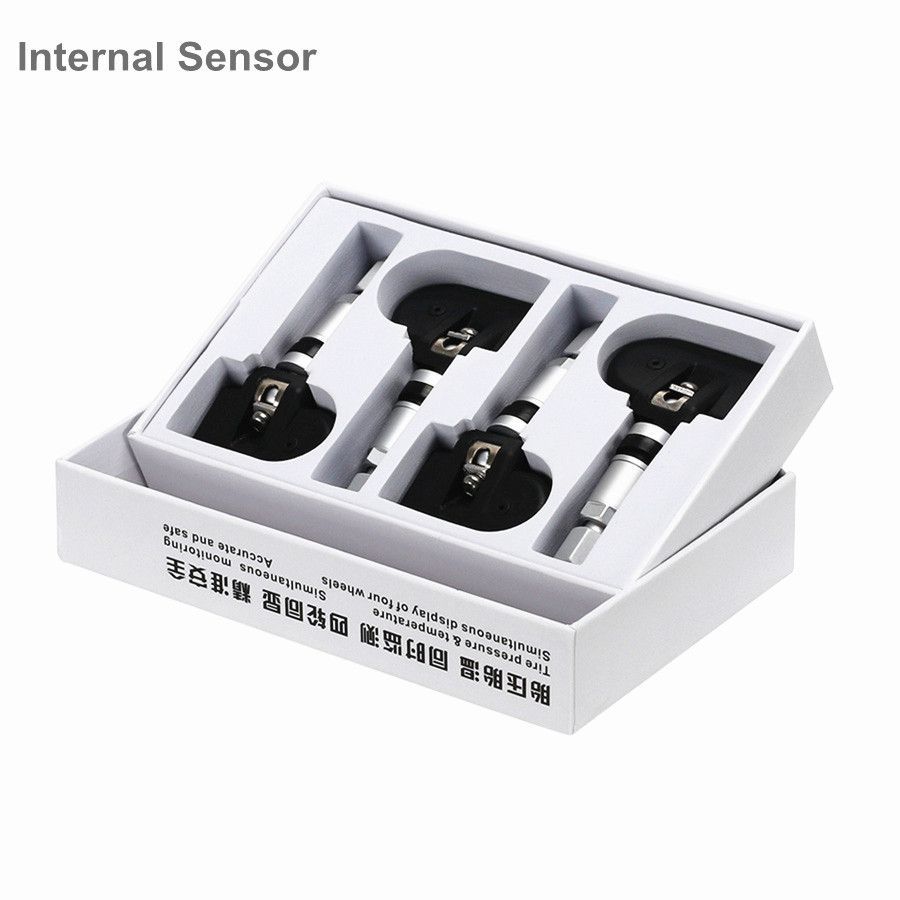

4 Internal Sensor Display:

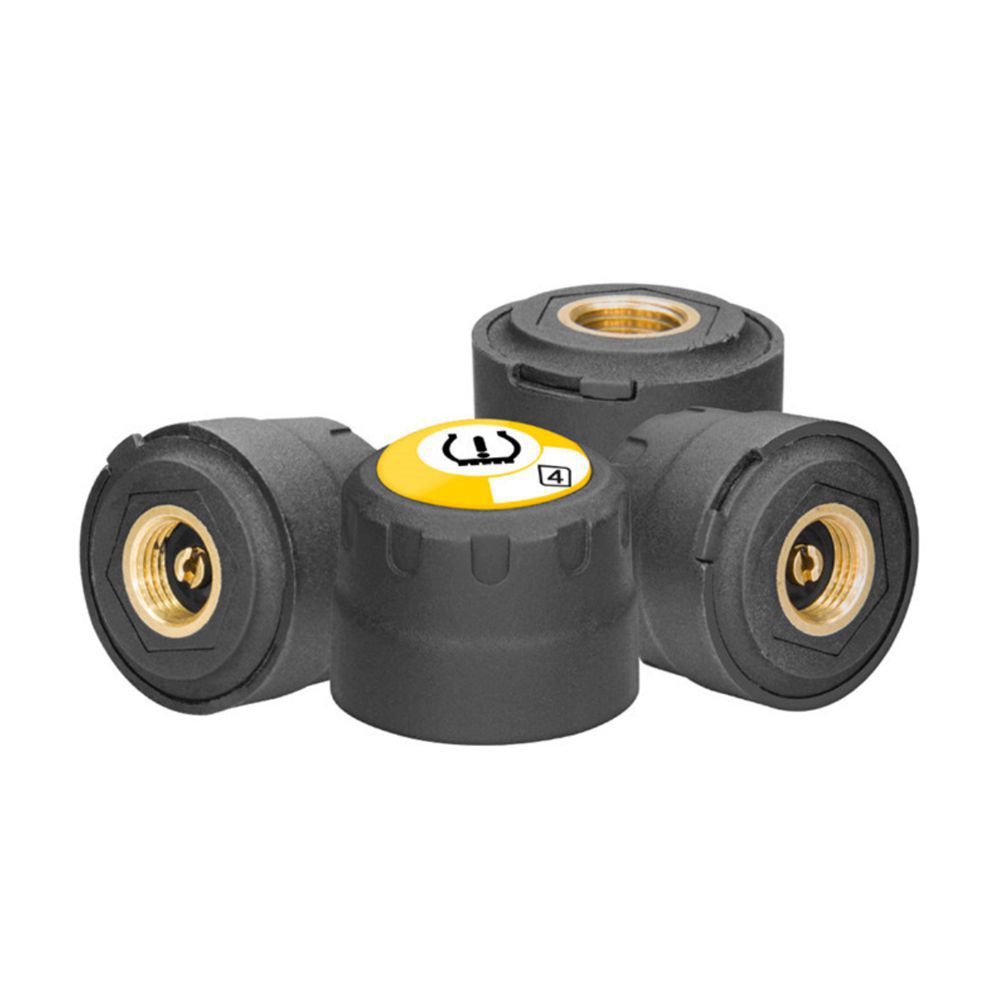

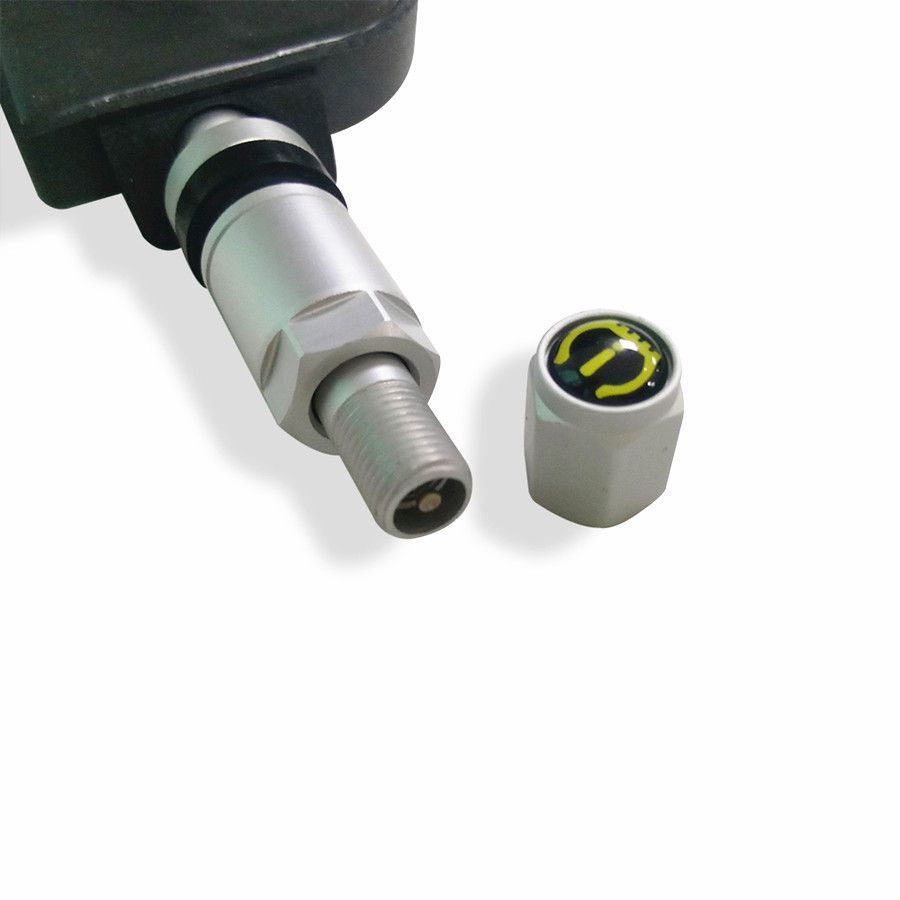

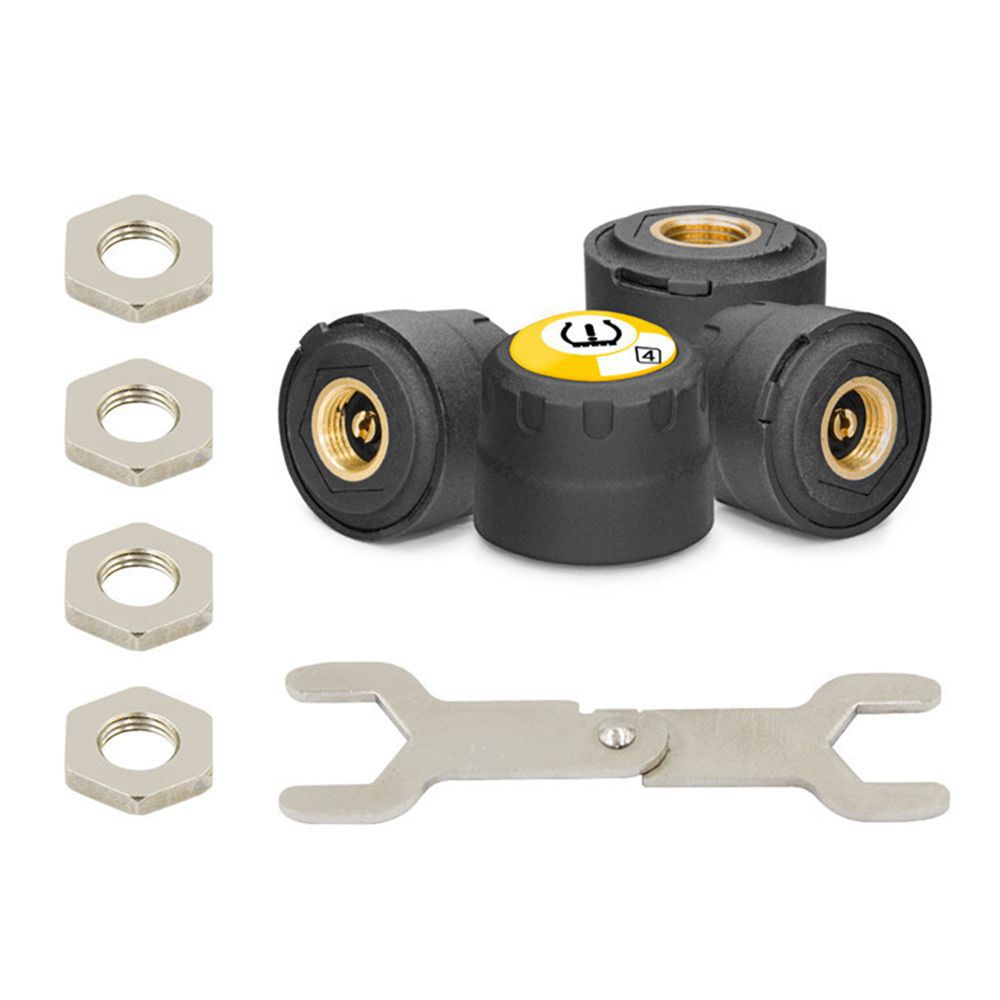

4 External Sensor Display:
Description:
This is the newly developed TPMS Monitor Alarm system which works through Bluetooth 4.0 (Bluetooth Low Energy Consumption).
You just need to install 4 TPMS sensors on Tires and they will send the temperature and pressure signal to mobile phone through Bluetooth. You can view rea-ltime temperature and pressure through the APP you installed on Andriod and IOS device. APP will alarm when temperature and pressure of tires are abnormal.
Please note:
It only supports Android and iOS Smart phone ONLY !!!
It does not support car's navigation android system and no supports car DVD Android system.
Please first install the sensors and then connect to your phone.Otherwise it will connect failed and shows errors.

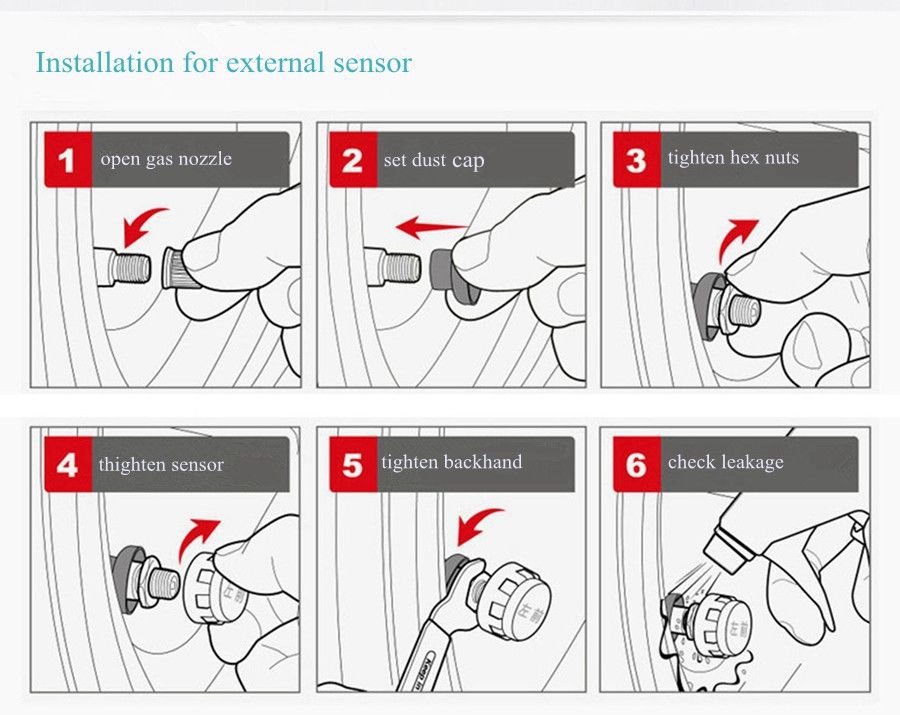

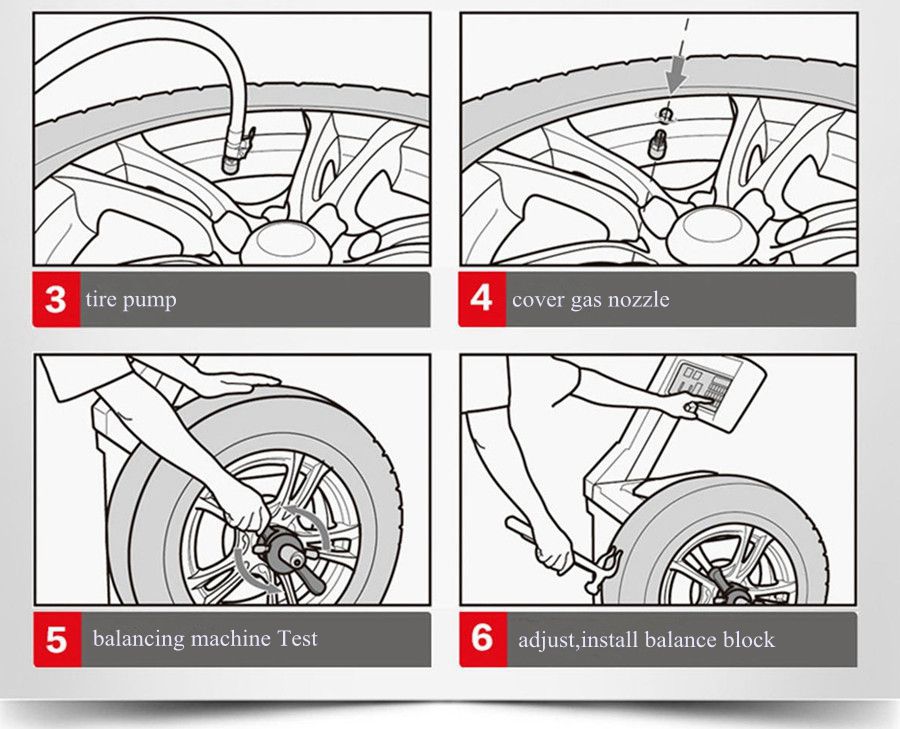

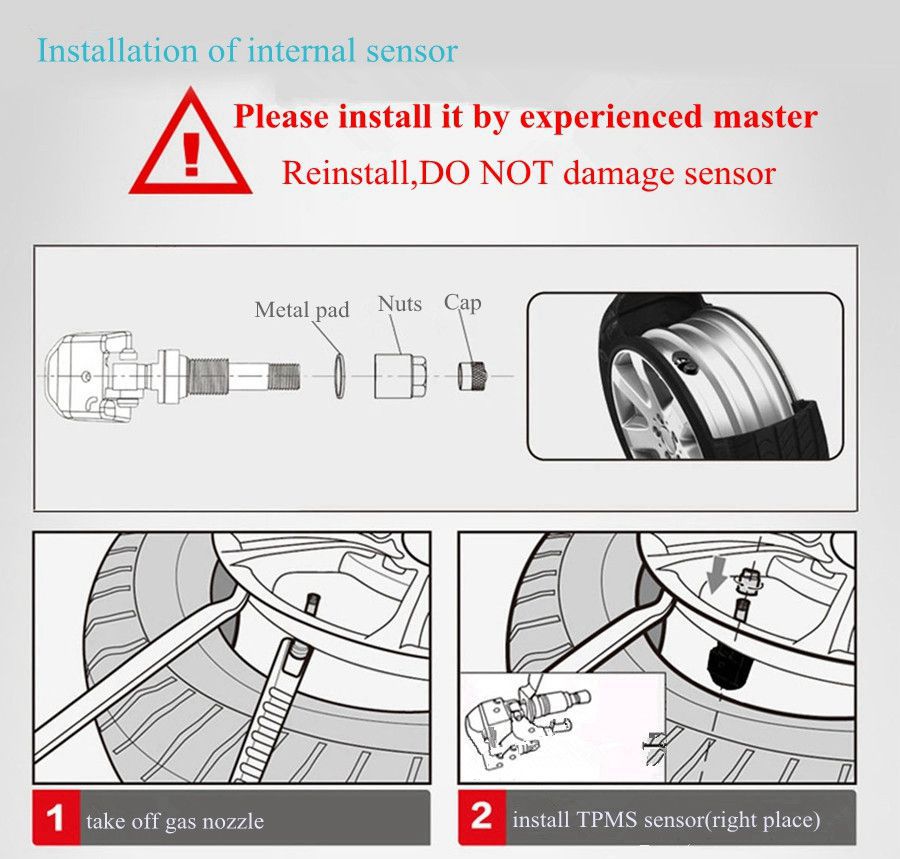

Installation Steps:
1. Install the sensors to your tires

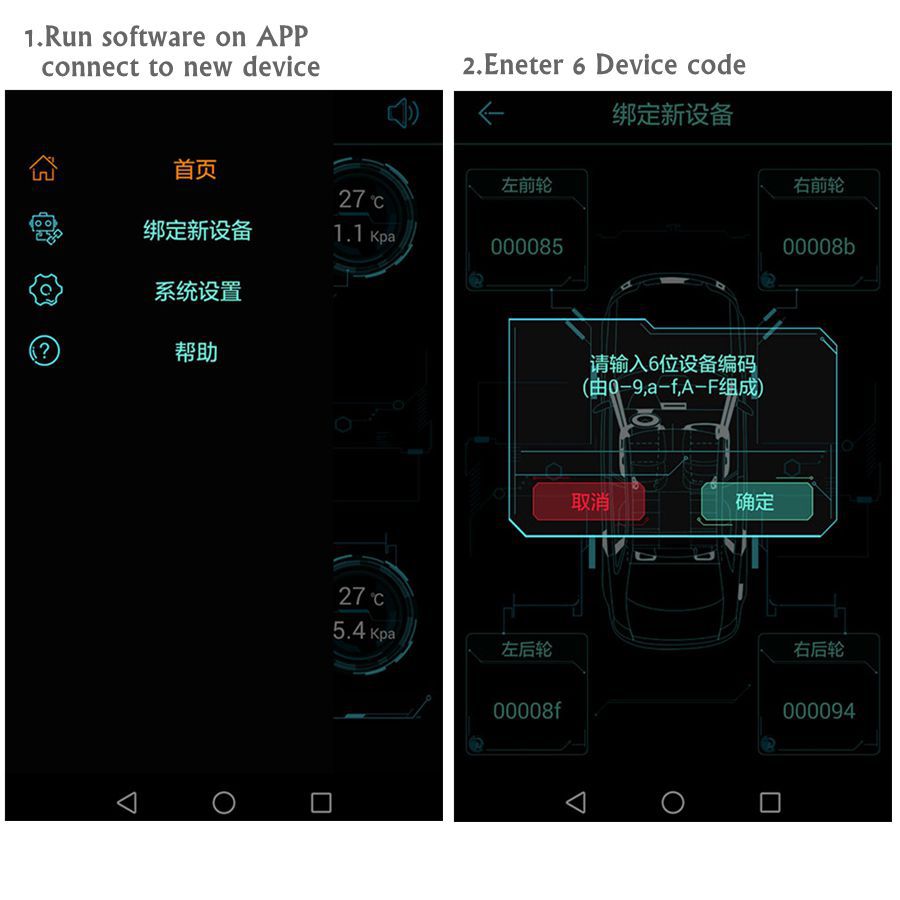

2. Connect the sensors to your Phone's APP.
3. After you installed and bound the sensors well, please open the app, please inflate or aerate the tire to activate the bluetooth of the sensors at the same time .
Supports Platform:
Working Via Android/iOS Mobile Phone,Scan QR Code to Download software for APP Display.
Android(Android4.3 and above bluetooth 4.0)
iOS(for iPhone 4S and above bluetooth 4.0)

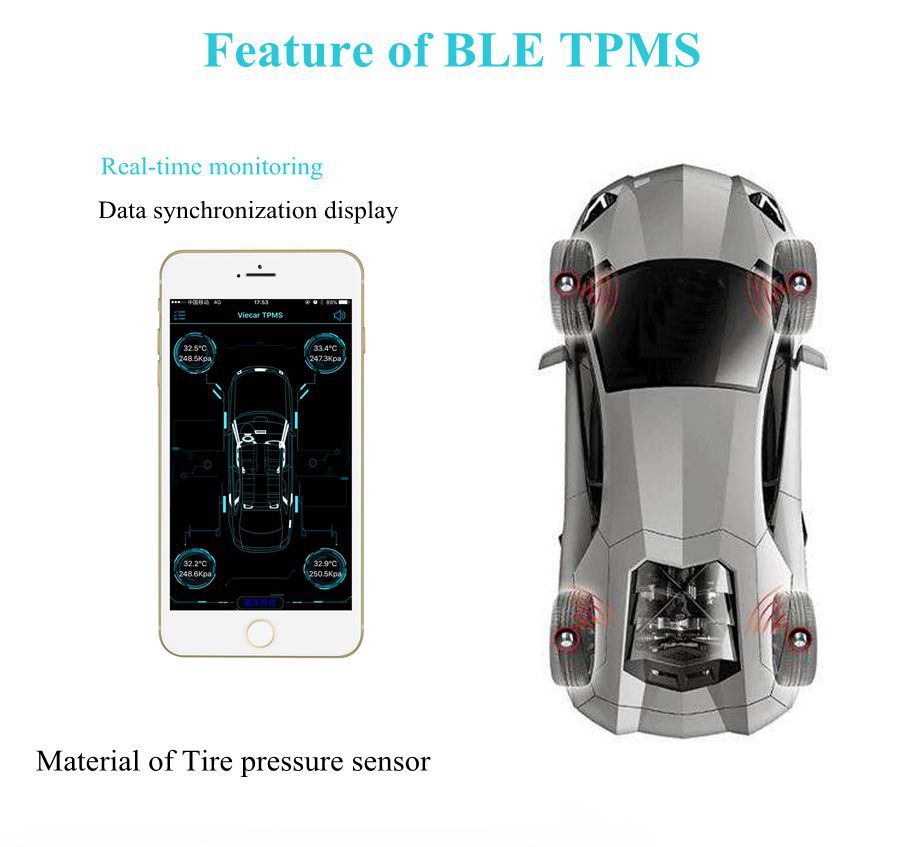

Feature:
Fuel economy,Less wear,Tire burst,APP Display
Tire pressure&temperature,Simultaneous monitoring,Simultaneous display of four wheels,Accurate and safe
Real-time tire detection to ensure traffic safety.
TPMS:
All-round real-time monitoring of tire pressure and temperature
Tire leak alarm,low pressure alarm,high pressure alarm,high teperature alarm
Wireless connection,prefessional certification,energy saving,applicable to all models
Highlights of The Bluetooth 4.0 TPMS Mornitoring Alarm System:
- TPMS Sensors works through bluetooth 4.0 to mobile phone. Fast and accurate.
- There are 4 internal sensors will be installed, Anti-theft and waterproof (IP67).
- Internal sensors can works 5 to 8 years( 40 KM per day)
- It has KPA, BAR and PSI switch function.
- It has C and F temperature switch function.
Parameters:
- CPU: ARM M0
- Working voltage: 3V
- Working current: 100μA
- Sleeping current: Less than 2.2μA
- Bluetooth working frequency:2.4GHz
- Response time: Less than 5S
- Tire pressure detection range: 100-1300 kPa (1-13 Bar)
- Tire pressure detection accuracy: ± 10kPa (0.1 Bar)
- Battery life : 3-5 years ( external sensor), 40km per day
- or 5-8 years ( internal sensors), 40km per day.
- Sensor Weight: one sensor 36g,four sensors total 144g
- Package Weight:240g

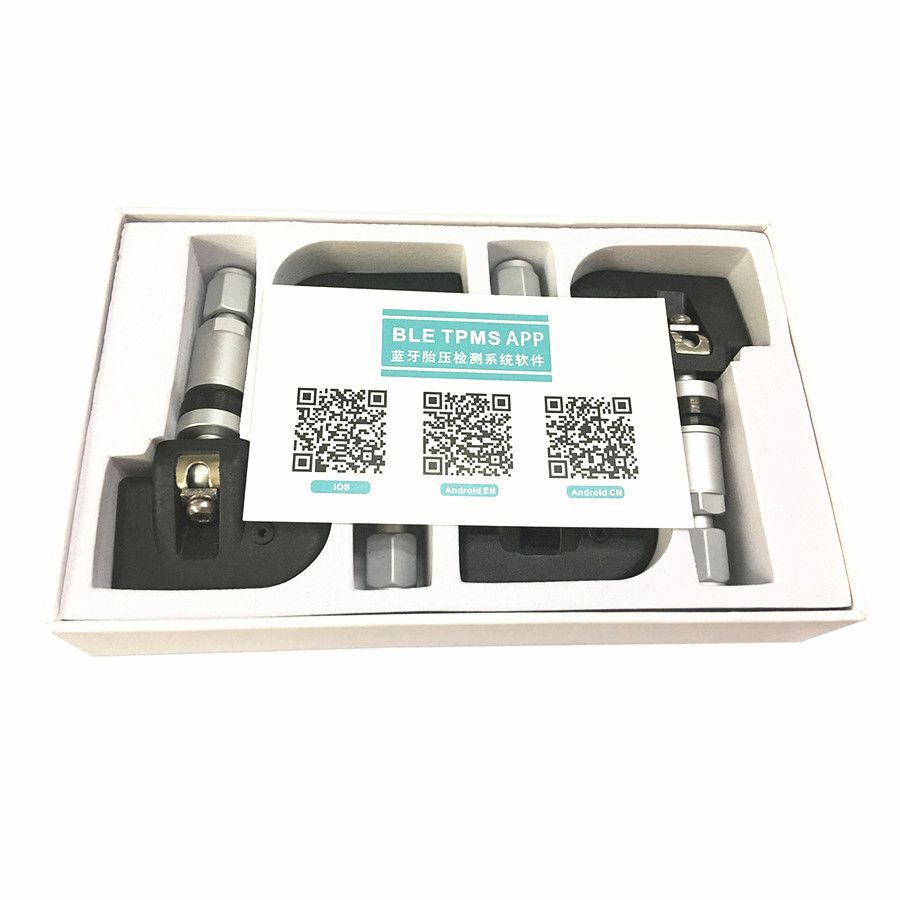

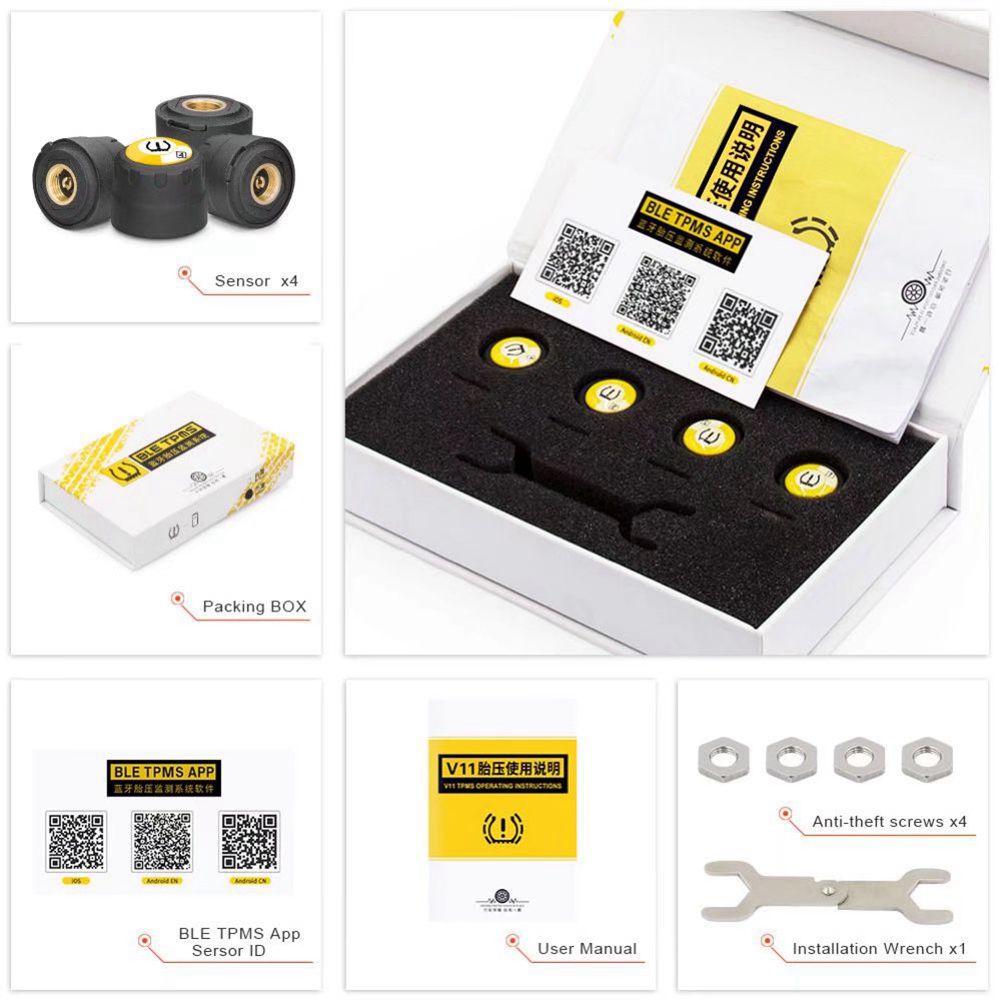

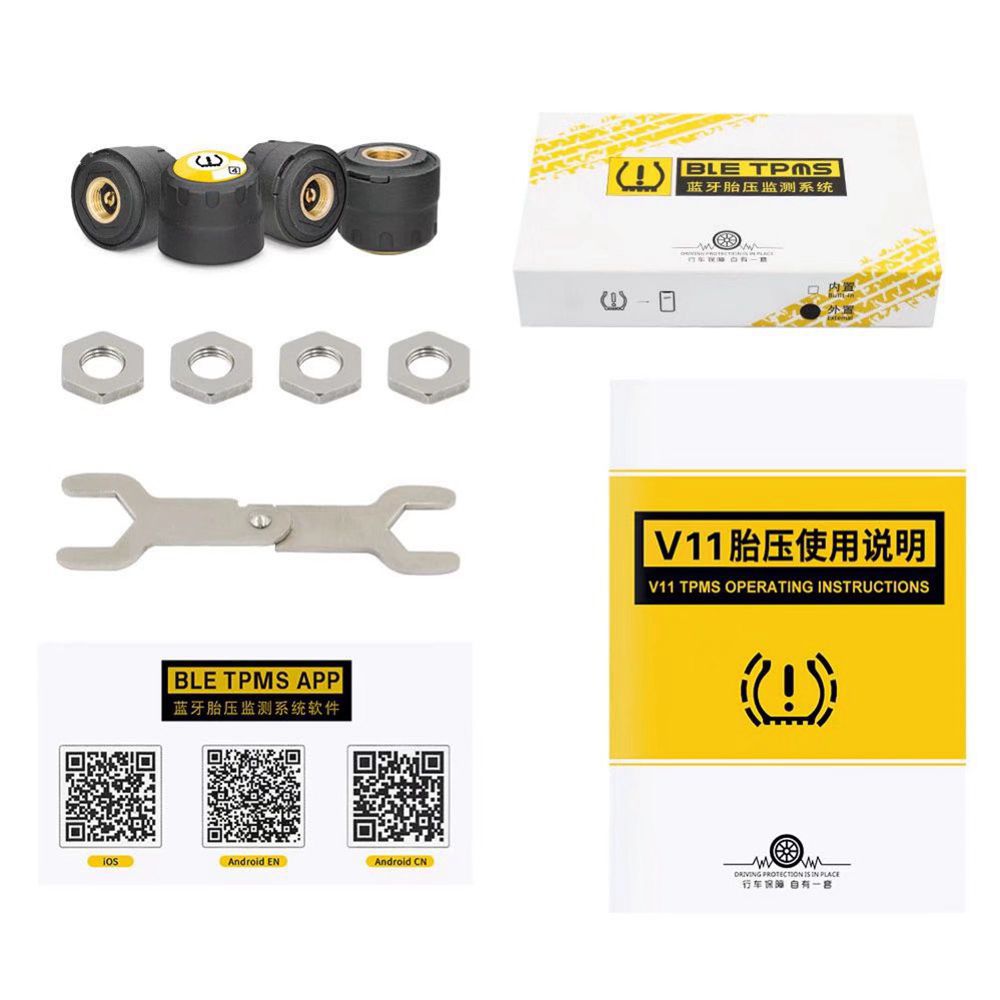

Packing list:
- 4 x BLE TPMS Sensors(Optional)
- 1 x Card with App QR Code
- 1 x Carton Box
Q:What is the APP ?
A:APP Name:BLE TPMS
Q:How many Langauge supported?
A:Language:English/Chinese

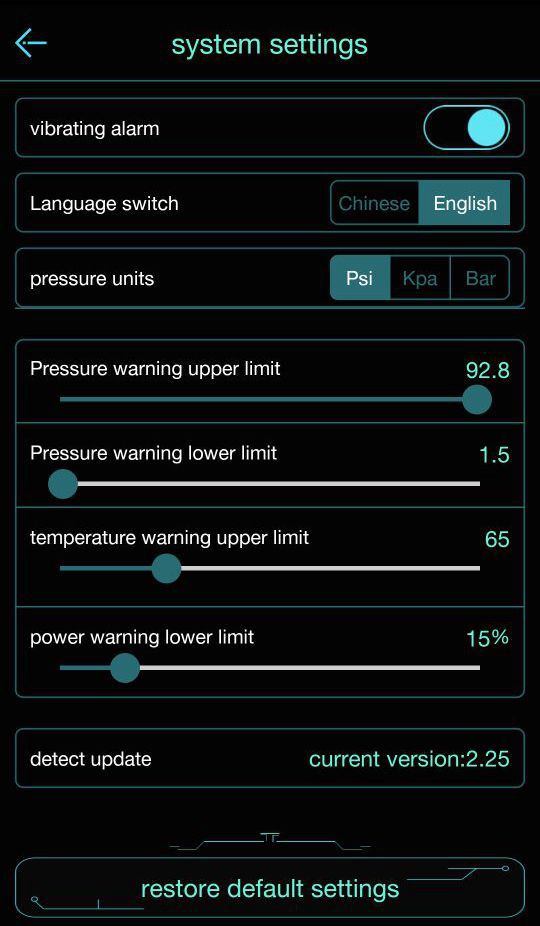

On APP system setting ,there is Language switch
Q:How long about the battery life and can it replace battery?
A:External Sensor can replace battery
Internal Sensor can not replace battery,the working time is 5~6 years
Q: Can this TPMS work on Car's Android Navigation or DVD or Radio ?
A: Sorry,TPMS doesn't support it for the moment, only support smartphone.
Q:Why the APP shows "low Bait"error?
A:Beucase you did not install the sensors to your tire ,so the APP shows error .Before you connect to phone ,please first install sensors to tire.

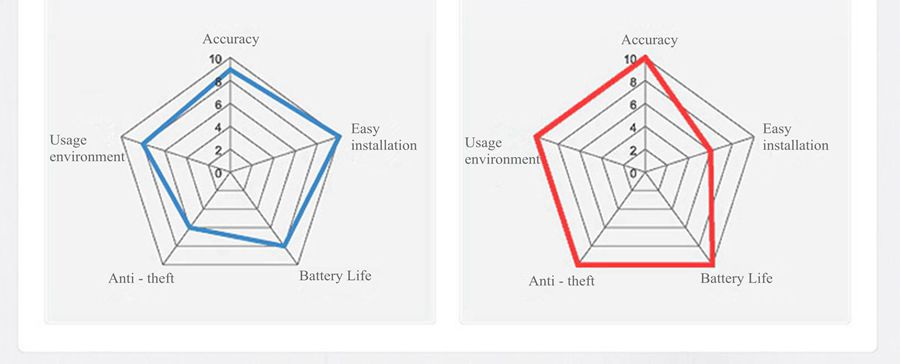

Q:What is the different between Internal Sensor and External Sensor?
A:please check below photo

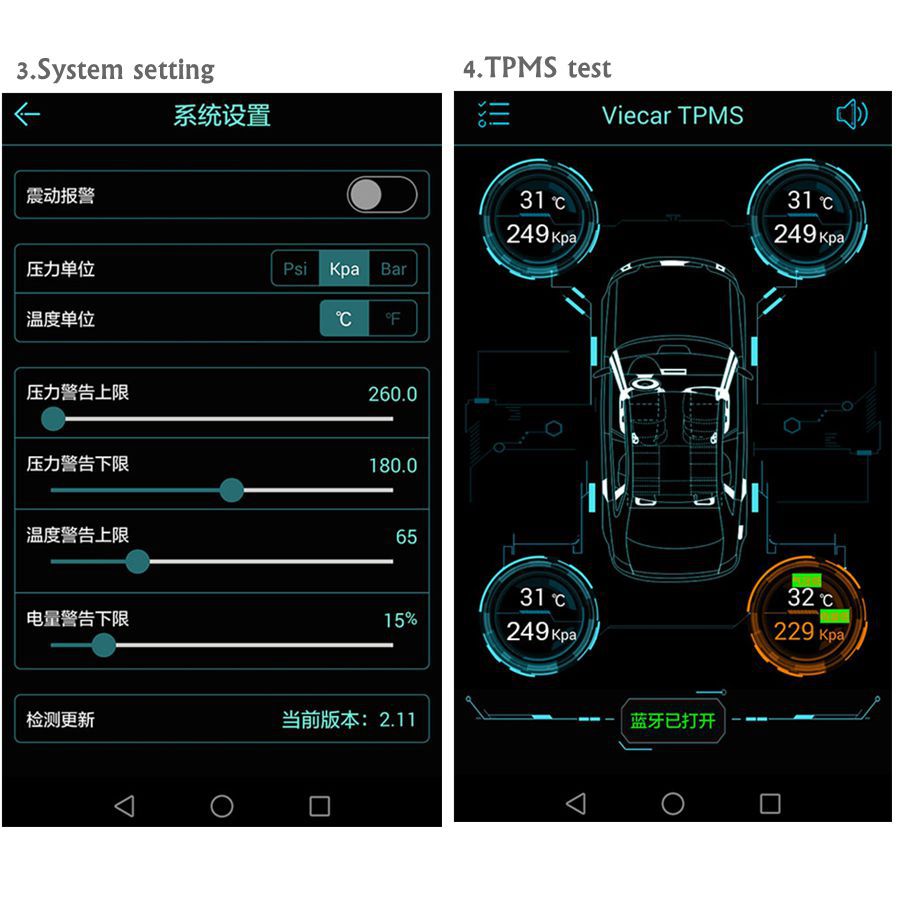

Works on Android Phone APP for reference:
