Xhorse Multi Prog
XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.
2025 Newest XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Instrument Work with MLB Tool is a one of our Xhorse Multi Prog Tools, you can buy 2025 Newest XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Instrument Work with MLB Tool from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

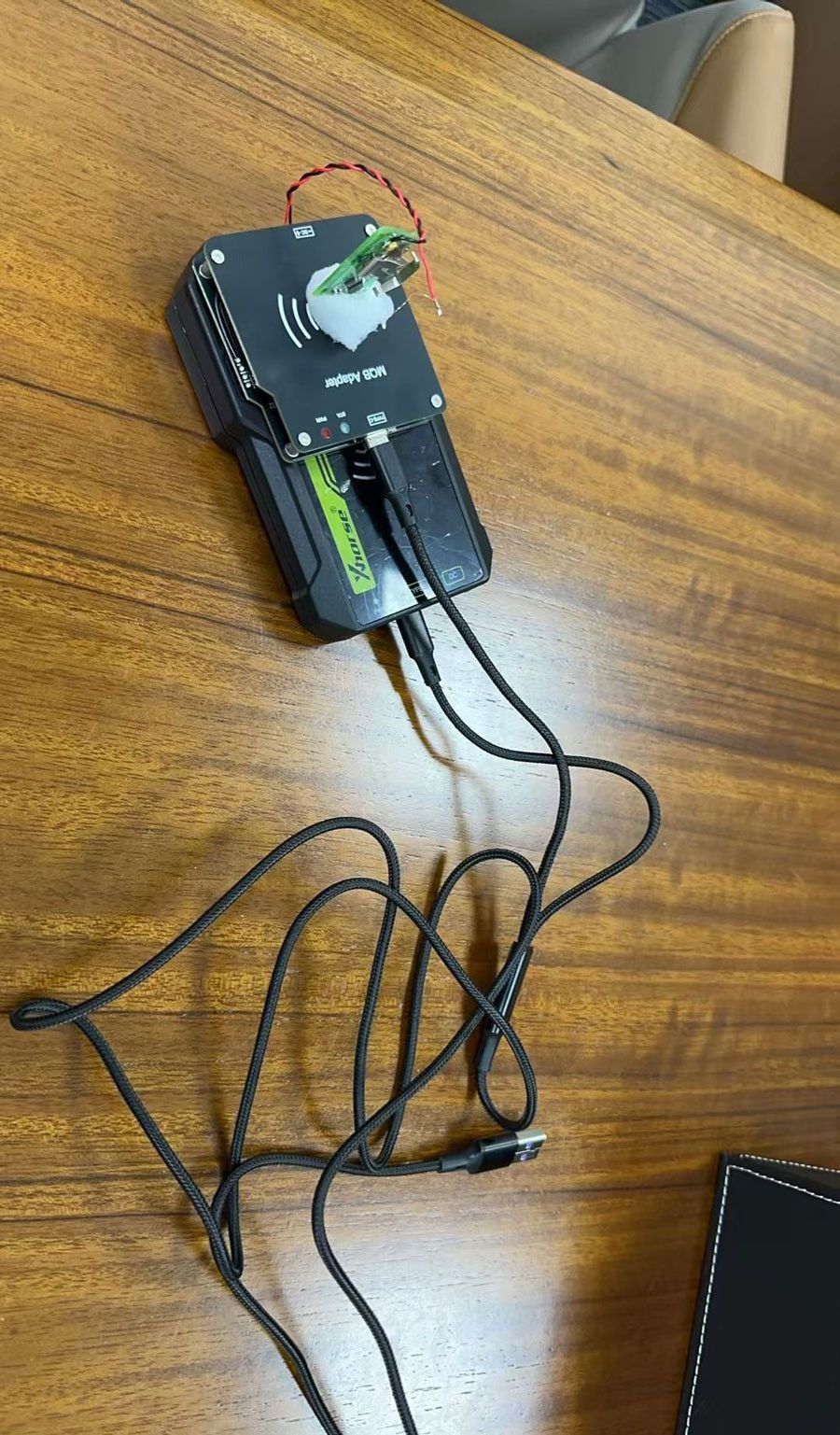

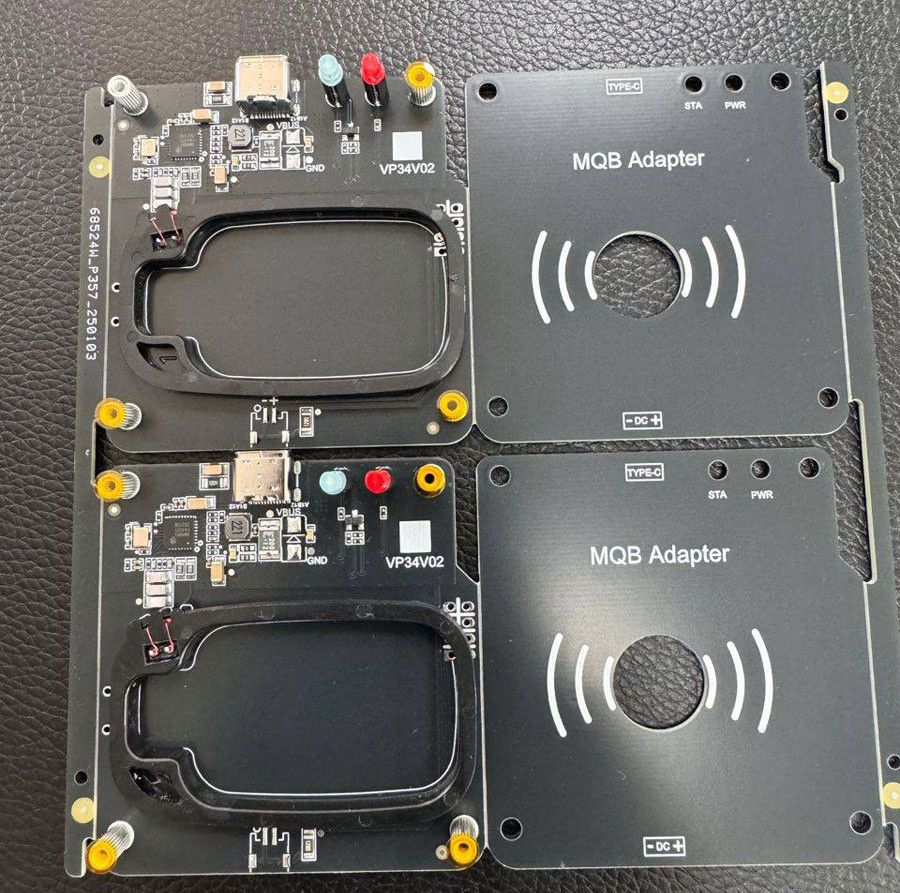

images of 2025 Newest XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Instrument Work with MLB Tool
XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.
Product Features:
1. Supports most MQB48 keys
2. Low-risk & simple operation – No need to disassemble the instrument
3. Works with MLB equipment for seamless key addition
MLB+MQB adapter instructions
VVDI2 device
1. Use MLB device + MQB adapter to read IMMO data from MQB48 key.
2. Use VVDI2 to load the IMMO data read in the first step: generate key, learn key (VVDI2 needs to enable MQB function, does not need MQB48 NEC35XX locking function)
KEY TOOL PLUS / KEY TOOL MIDI device
1. The tablet device is directly connected to MLB device + MQB adapter, and IMMO data can be read from MQB48 key.
2. The tablet device loads the IMMO data read in the first step: generate key, learn key (the tablet device needs to have fourth-generation authorization, does not need MQB48 NEC35XX locking function)
Warm notice: It is strongly recommended that customers collect data on a computer instead of using a tablet.
Wiring & Connection Guide:

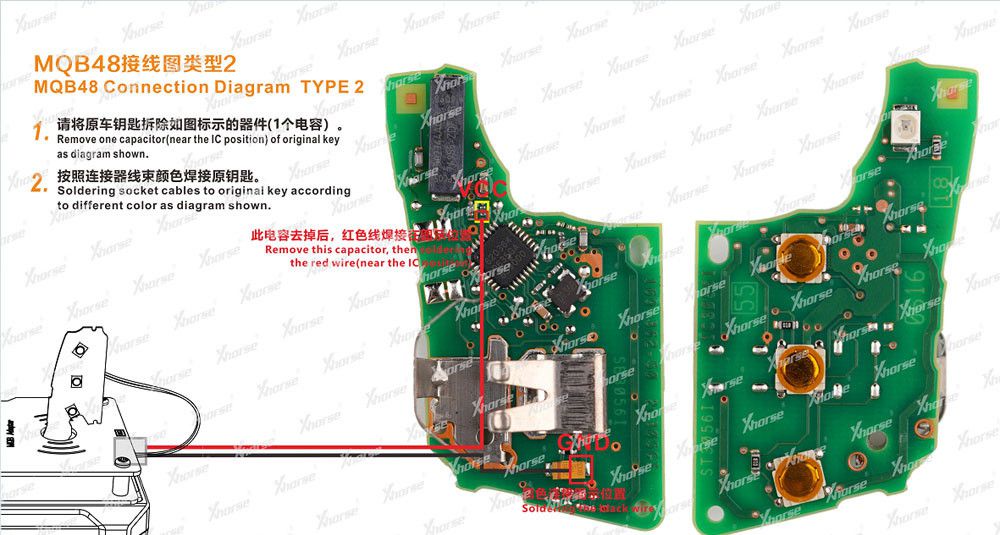

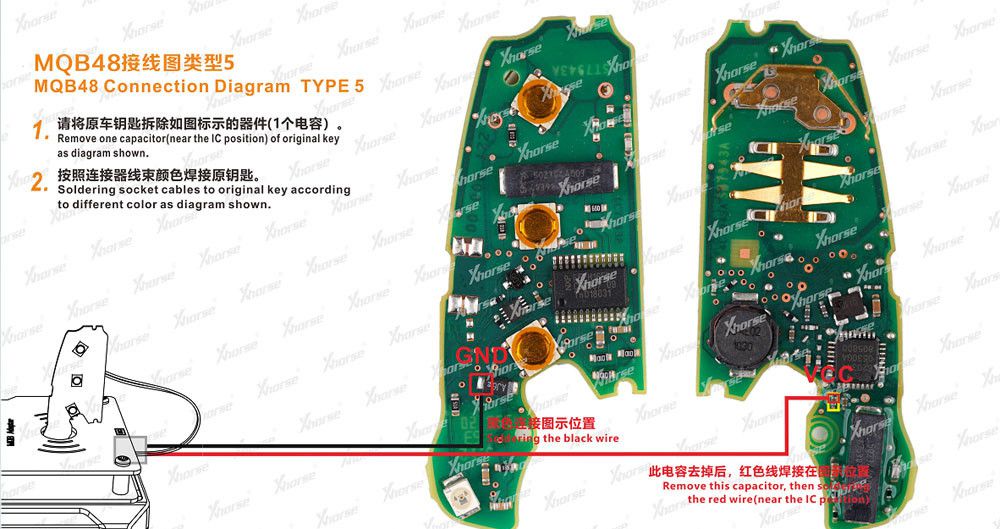

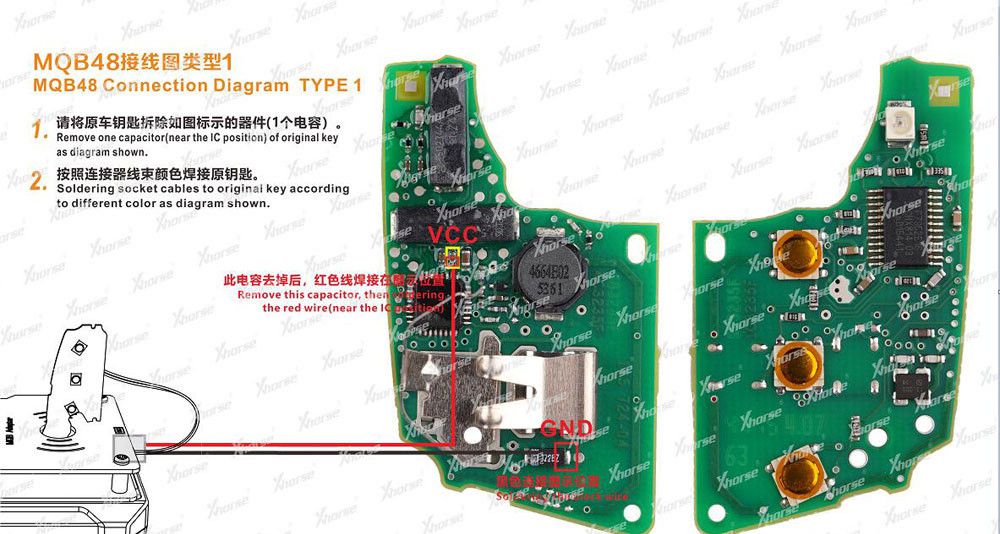

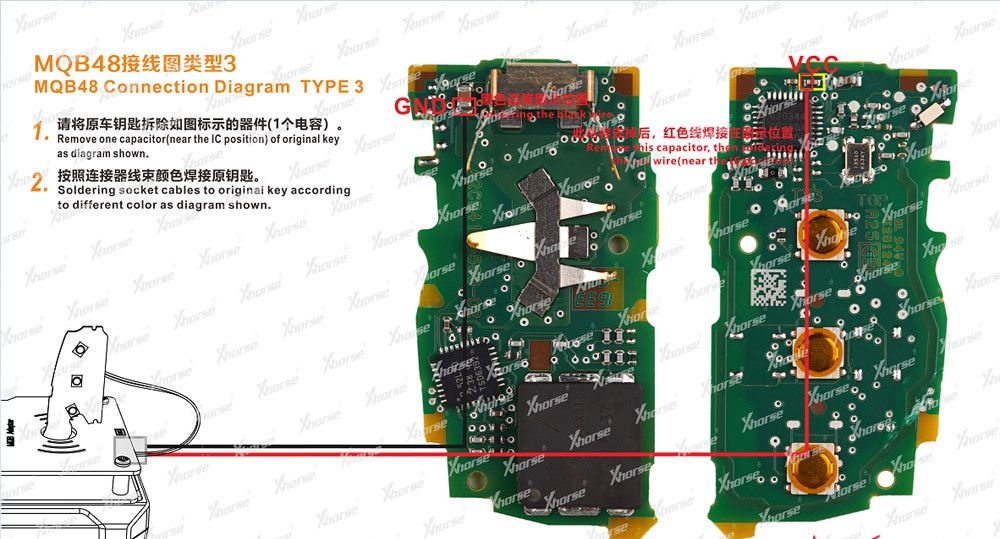

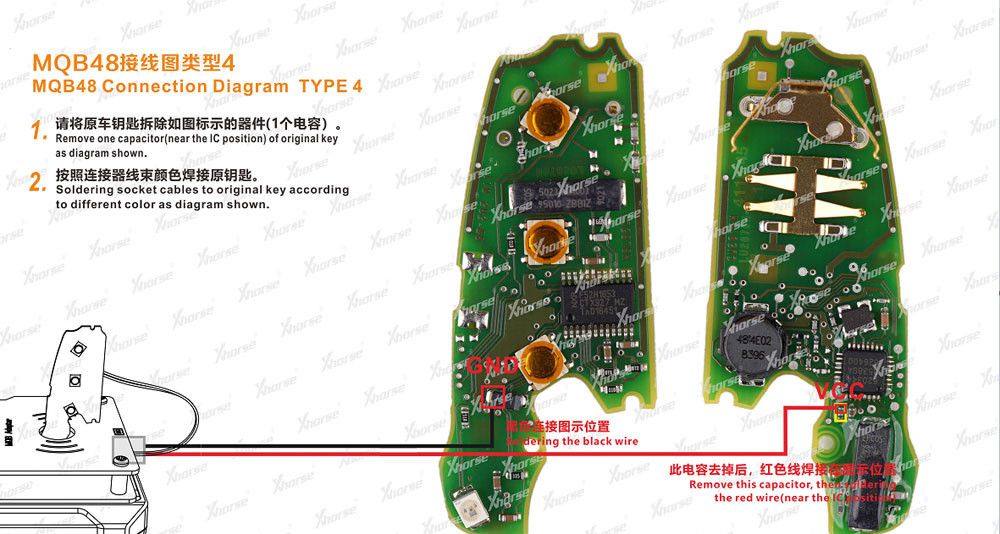

VVDI MLB Tool MQB48 Wiring Diagram：Remove one capacitor (near the IC position) on the original key, as shown in the diagram.
Solder the socket cables to the original key according to the specified colors in the wiring diagram.

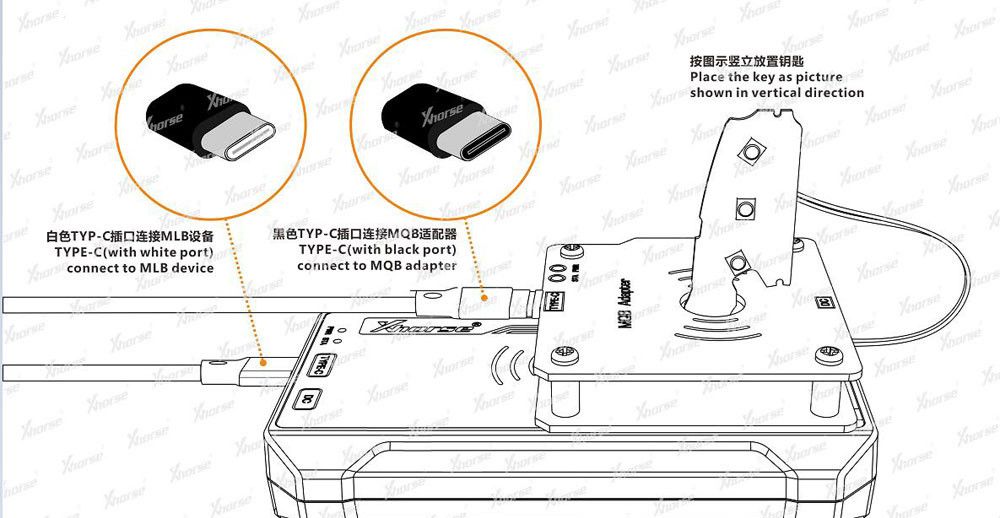

Connection:
Package includes:
1pc x XHORSE XDMQBAGL MQB Adapter
Go to Buy: 2025 Newest XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Instrument Work with MLB Tool
