autel ds708

Autel MaxiDAS DS708 is ingeniously designed to recreate the functionality of the tools used by automotive manufacturers’ dealers, empowering independent garage shops to provide complete servicing in their own shops. Autel MaxiDAS® DS708 works on Asian, European and American cars with multi-language.

Original Autel MaxiDAS® DS708 DS708 Scanner With Multi-language is a one of our autel ds708 Tools, you can buy Original Autel MaxiDAS® DS708 DS708 Scanner With Multi-language from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of Original Autel MaxiDAS® DS708 DS708 Scanner With Multi-language

Original Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-languageOriginal Autel MaxiDAS® DS708 DS708 Scanner With Multi-language


Original Autel MaxiDAS DS708 Wireless Scanner

Top 6 Reasons to Get Autel Maxidas DS708:
1. Support Multi-Language: English, Spanish, French, German, Portuguese and Russian
2. One Year Free Update Online
(After One Year, USA and Canada Customer Update Service 695usd/Year, Other Areas Update Service 500usd/Year)
3. Extensive Vehicle Coverage for More Than 50 Domestic, Asian and European vehicle makes
4. Powerful Function, Support 12V Petrol and Diesel
5. Complete Function Capability Including Live Data, ECU Programming, Sensor Initializations, Coding & Module Set Up Functionality

6. Wi-Fi Internet Capability: allows for wireless access throughout the workshop
Notice:
1. If you live in USA, We will ship from USA Warehosue by UPS, Which is NO TAX with fast delivery.
2. This DS708 is not Latin version
Autel Maxidas DS708 Feature and Function:
1.Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes
2.Deep vehicle system coverage for ALL electronic systems
3.Complete function capability including live data.
4.Unparalleled OBDII functionalities supports ALL 5 OBDII protocols and ALL 9 test modes
5.Automatic Wi-Fi updates available in new software releases
6.Innovative dual-processor technology for quicker diagnostics and boot-up
7.The genuine Windows CE operating system allows for more stable performances, better compatibility and expandability
8.Internet explorer brings internet resource of your choice at your fingertips
9.WIFI internet capability allows for wireless access throughout the workshop
10.Extremely easy-to-us with touch-screen operation and intuitive operation
11.Unique shop tough ergonomic design features multi-layered rubber protection and strong housing
12.Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
13.Captures, saves and prints screenshots for convenient troubleshooting
14.Displays live data in text, graph and analog for easy data review and analysis
15.Records and playbacks live data to pinpoint troubles of sensors and components
16.Innovative graph merging for easy and quick detection of intermittent problems
17.Automatic WIFI Data Logging for quick and accurate technical support and troubleshooting
18.Built-in overvoltage protection keeps the instrument and vehicle from unwanted damages
29.Creative remote diagnosis for convenient demonstrationand training
20.Powered by Autel® Uni-SCANTM technology with no need for extra adaptors or "keys"
21.Prints out recorded data any time and anywhere with Wi-Fi printing capability

Autel Maxidas DS708 Connection Picture:


Original Autel MaxiDAS DS708 Connection


Autel Maxidas DS708 English Version Vehicle List:

1. European vehicle list:
AUDI, Benz, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA vehicle vist:
GM, Chrysler, FORD

3. Asia vehicle list:
SUZUKI, Kia, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, Nissan, Mitsubishi, LEXUS, INFINITI, Hyundai, HOLDEN, Honda, ACCURA, Mazda.

Maxidas DS708 Software Display:

DS708 Software-1
DS708 Software-2
DS708 Software-3

Autel Maxidas DS708 Software Update

Autel frequently releases software updates that you can download. TheUpdate feature makes it very easy to determine and get exactly what you
need.The Update allows you to update the scan tool software either through the scan tool or via a computer.

1. Autel DS708 Update Software through the Scan Tool
1.Ensure that the scan tool is connected to a power source and the power LED light is illuminated.
2.Press the ON/OFF button to turn on the scan tool and wait for the Home screen to appear.
3.Connect the scan tool to the Internet. (Please refer to the Section 5.2 Wi-Fi or the Section 5.3 Network.)
4.From the main screen, choose Update, and the scan tool will load on and display the “MaxiDAS ® DS708 Update V3.25.18: (user name)”
screen. Update checks for available updates.
5.If the system program in your scan tool is not the latest version, we suggest you to update it right now. When system program is installed,
scan tool will prompt you with a message, “Please restart the scan tool to finish updating.” Either you exit the program and restart scan tool
right now, or you could try it later.
6. In the Update window, select the items you want to install. Usually, youshould install all available updates.

Update through scan tool – Main Screen
NOTE: If the scan tool fails to log on the updating process, you might be using an illegal or limited connection. Please consult your Internet
administrator and adjust Internet settings. To check the Internet status,you can try logging on a website on the scan tool.


2. Autel DS708 Update Software via a Computer
1. Ensure that the update application software has been properly installed to your PC. If not, please refer to Section 2.3 Install the PC Software.
2. Make sure that your computer is connected to the Internet.
3. Load the SD card of the scan tool to your PC.
4. Run the update client software. Wait for the Log In window to pop up.

5. Enter the user name and password and wait for the Update window to display. If you forget your password unintentionally, you may always
click the [Forget Password?] to link to our website and find your password back.

6. Use the pull-down menu on the right to select an SD card if two or more SD cards have been connected to the PC.

7. The detailed updating procedure operates pls follow user manual.

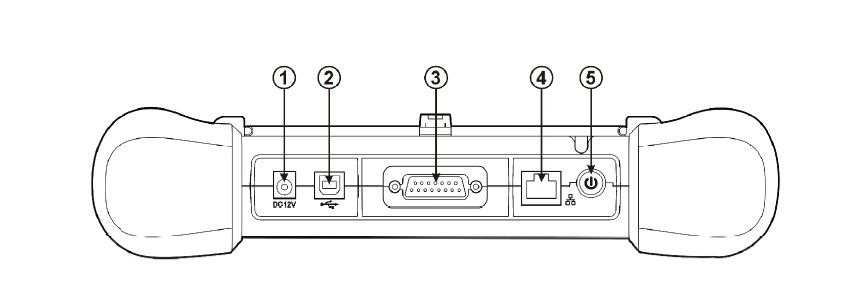

Autel Maxidas DS708 Component Descriptions

Autel Maxidas DS708 Component Descriptions

1. DS708 Main Connection Port Connect to the mains for power supply of updating, printing data logging and internet access after disconnecting from the vehicle.
2. USB Connection Port Connect to the computer for updating and printing.
3. Diagnostic Socket Provides power supply and connection to the vehicle via diagnostic cables and connectors supplied.
4. Internet Connection Port Provides internet access for updating, printing and data logging and brings the internet resource of your choice at your fingertips.
5. ON/ OFF Button Powers on/ off the diagnostic tool.
Note: The scan tool will not turn off automatically; it stays on until you turn it off.

Maxidas DS708 Screen

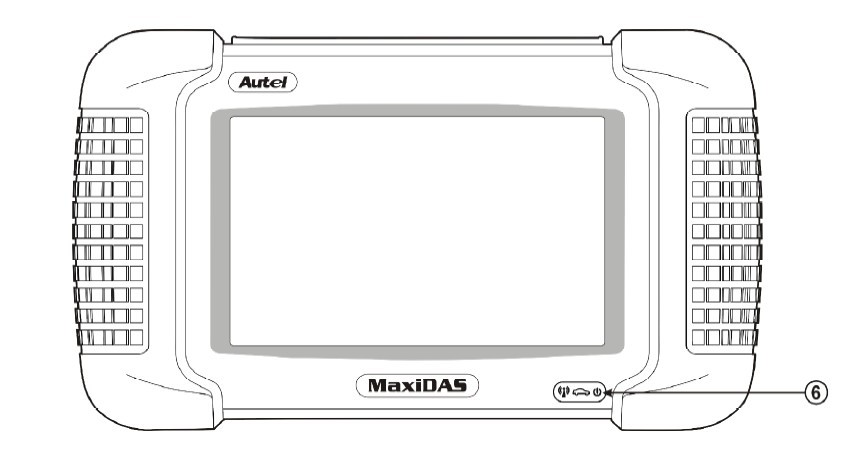

6. DS708 LED Indicators
The three light-emitting diodes indicate certain system conditions,
Communication LED – Green LED light in middle shows when the unit is in service.
Wireless LAN activity LED – Green LED light in the left shows when a wireless local area network in enabled, flashes when data is being sent or received.
Main Power LED – Red LED light in the right shows when the unit is powered on.

Autel DS708 details display 1

7. DS708 SD Card Slot
The standard SD (Secure Digital) card slot enables the unit to read and write data to the card inserted in the slot. To use the software, insert the card with the metal contacts facing down and pointing toward the MaxiDAS.
Note: Do not force media into the SD card slot. This may damage the SD card slot. To Remove SD Card, press the card again and slot will pop out card automatically.


Autel Maxidas DS708 details display back side

8. Stylus The Stylus is used for typing and selecting. To calibrating Touch Screen, refer to chapter 7 – 8, Calibrating Touch Screen.
9. Stand The built- in metal stand allows the unit to rest for hands-free viewing when extended. It is attached to the back of the scan tool and can be secured to the back again unit when not in use.
10. Handgrip The handgrips are attached to both sides of the MaxiDAS unit. Hold the handgrips to stabilize the unit while using. The handgrip also eliminates the damage when you drop the tool accidentally.
11. MaxiDAS 708 Label
The Label includes the notice and warning.
12. LCD Screen Displays the menus and data screens.
Important: Use the supplied stylus or plastic-tipped pens for touch screen display. Do not use pencil, pen or any sharp object on touch screen display.
13. Memory Card
The Memory Card contains the tool’s diagnostic software, applications and maximum of 4 Gigabytes storage.
Note: Do not remove the memory card while the unit is in service.
14. DLC Cables
The DLC (Data Link Connector) Cable is used to connect between the scan tool and vehicle’s DLC. Numbers of cables are provided; select the appropriate one for the vehicle being tested. An optional extension cable may also be used.
15. AC Power Supply
The AC power supply and power cord (12V and 3.33A) is used to power the scan tool from wall socket.
AUTEL DS708 Package List:

1. Main part

1pc x DS708 main unit
1pc x Stylus pen
1pc x 4GB SD memory card
1pc x Carrying case

2. Adaptor

1pc x OBDII 16PIN
1pc x Honda 3pin
1pc x AUDIA 2x2
1pc x Benz 38pin
1pc x BMW 20pin
1pc x Chrysler 16pin
1pc x Fiat 3pin
1pc x GM/Daweoo 12pin
1pc x Honda 3pin
1pc x Mitsubishi/Hyundai -12+16pin
1pc x Kia 20pin
1pc x Mazda 17pin
1pc x Nissan 14pin
1pc x PSA 3pin
1pc x TOYOTA 17pin
1pc x TOYOTA 23pin

3. Test cable

1pc x Main cable
1pc x Cigaretter Lighter
1pc x Clipper cable

4. Accessories

1pc x AC Adapter
1pc x RS232 serial cable
2pcs x Lighter fuse 6*30mm
1pc x SD Card reader
1pc x CD
1pc x User's manual
1pc x Quick guide
1pc x Package list

Autel MaxiDAS DS708 Package-1
Autel MaxiDAS DS708 Package 2
