ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter is a high speed of Dual Channel Oscilloscope & Multimeter which can test automotive oscilloscope for specialists.
Super fast Oscilloscope, high-accuracy multimeter.
OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
COBD22782History: 2 sold Price Down Notice
Price:
US$2,065.00/ piece
Discount Price:
US$1,377.00/ piece 33%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details ?
Returns:
Return for refund within 30 days, buyer pays return shipping.Read details ?
Support:
Online Chat WhatsApp Skype Ask a question
ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
  • ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141

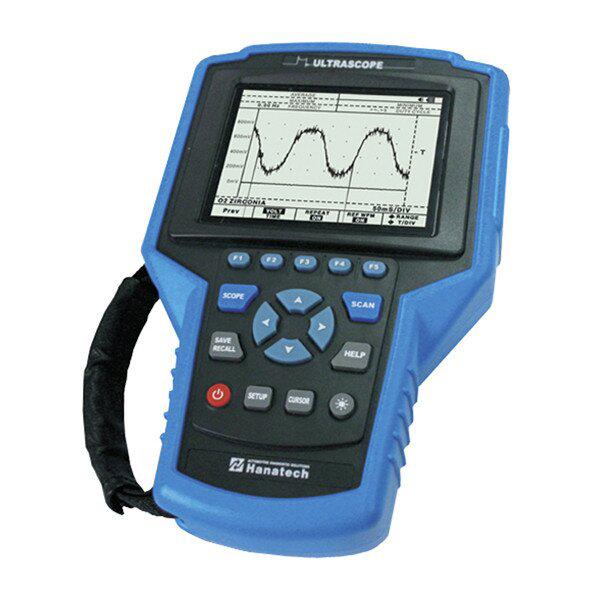

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter

Top 7 Reasons To Get ADS7100

  1. Super fast Oscilloscope, high-accuracy multimeter.
  2. OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
  3. Real time screen refresh rates.
  4. Small size, light weight, portable.
  5. Dual channel, auto calibration, auto trigger.
  6. Auto screen horizontal axis, perpendicular division.
  7. Low battery voltage charge indicator.

ADS7100 ULTRASCOPE Specifications:

  • Language: English
  • Material: Metal
  • Color: Blue+black
  • Display screen: 320*240 CCFL backlit LCD
  • Save model: Reference ware form saved
  • Connect: USB interface with PC

ADS7100 ULTRASCOPE Features:


  1. Maximum input voltage: 600V peak DC or AC.
  2. UI3111, CSA C22.2 No. 1010-1 safety standards compliance.
  3. Generic OBDII diagnostics.


Sample Rate 25 Ms/s(Dual CH mode)
50 Ms/s(Single CH mode)
Record Length 512 in single shot mode
256 in all other modes
Sample/Division 25
Update Rate Real time
Modes Single shot,Roll,Normal
Accuracy 0.01%
Sweep Rate 1uS to 5S in 1,2,5 sequence

Vertical

Bandwidth 1MHz
Resolution 8 Bit
Channels Dual
Coupling AC,DC
Input Impedance 1 MΩ
Accuracy 3%
Max input Voltage DC or AC 600vrms
Volt/Division 0.5mV to 500V in 1,2,5 in sequence
50mV to 50kV for ignition Secondary

Triggering

Source Internal, External
Coupling AC, DC
Slope Rising Or Falling edge
Trig Sensitivity 2/20 Division

Other

Waveform Memory 8 Shot
Reference Waveform 4S Shot
Ignition Analyzer Primary & Secondary Ignition
Conventional and DLI/DIS
Peak Voltage,Burn time & Voltage

DC V

Range Resolution Accuracy Impedance
5V 0.001V ±(0.3%+3) 1MΩ
50V 0.01V
500V 0.1V ±(0.5%+5)
1000V 1V

AC V

Range Resolution Accuracy Impedance
50-450Hz 0.45-5kHz 5kHz-20kHz
3V 0.001V ±(0.3%+3) ±(0.75%+5) ±(2%+5) 1MΩ
30V 0.01V
300V 0.1V ±(0.5%+5)
750V 1V N/A

OHM

Range Resolution Accuracy Over Load Protection
5kΩ 0.001kΩ ±(0.5%+5) 600V DC or AC rms
50kΩ 0.01kΩ
500kΩ 0.1kΩ
5MΩ 0.001MΩ ±(0.75%+10)

Continuity Test(Buzzer)

Test Voltage Threshold Over Load Protection
1.7V 100Digits 600VDC Or AC Peak

Optional Function

Temperature 0-200℃(Max 300℃)
Pressure 0-50Kg/Cm2
Ampere 0-4Amp, 0-40Amp, 0-400Amp

General Specifications

Operating Temp 0℃-50℃(32"F-122"F)humidity 75% or less
Power Supply Ni-MH 4.8V
Battery Life Time 3hours without backlit/2hours backlit ON
Display Type 320×240 LCD(CCFL backlit)
Dimensions 164mm(width)×58mm(depth)×256mm(height)
Weight 1kg

Package including:

  • 1pc x Body
  • 1pc x Adaptor Recharger
  • 2pc x Probe Cable
  • 2pc x Needle Cable
  • 1pc x Ignition CYL.1 Pickup Probe
  • 1pc x Battery Cable
  • 1pc x Aux. Cigarette Cable
  • 1pc x User Manual
  • 1pc x Carry Bag
  • 1pc x Box Enclosure
