V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit

1.Latest hardware version V7.020
2.Available Protocols for K-TAG: BDM MOTOROLA MPC5xx
3.Operation convenient, automatically recognize ECU model, high stability.
4.Can save your money to get the latest KTAG ECU Programming Tool
Item No. COBD24960
5 stars, 9 reviews.
In Stock
Price:
US$279.00/ piece
Discount Price:
US$69.99/ piece 75%
Quantity:

Shipping:
Free ShippingStandard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

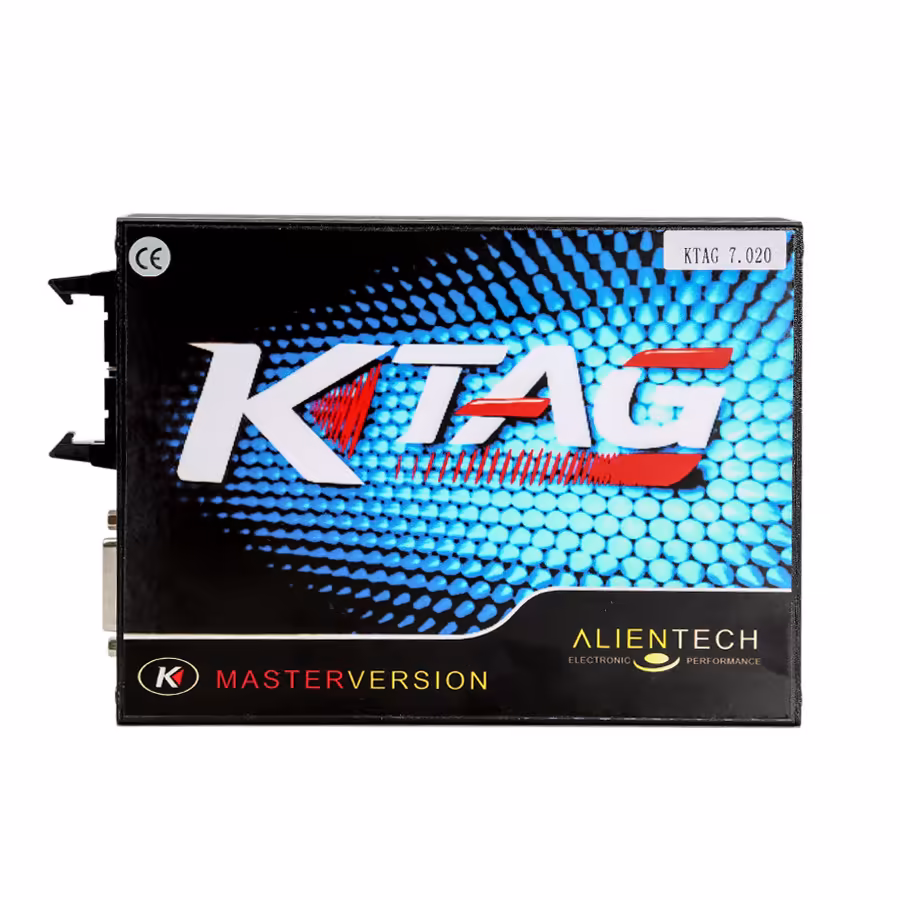

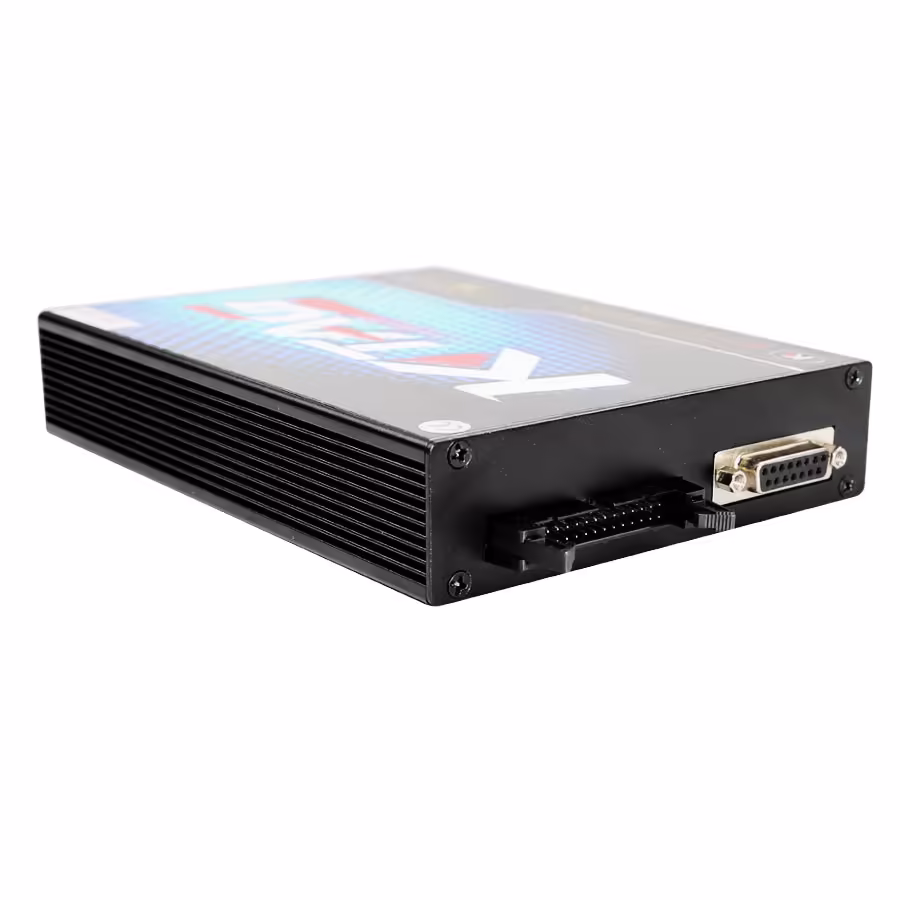

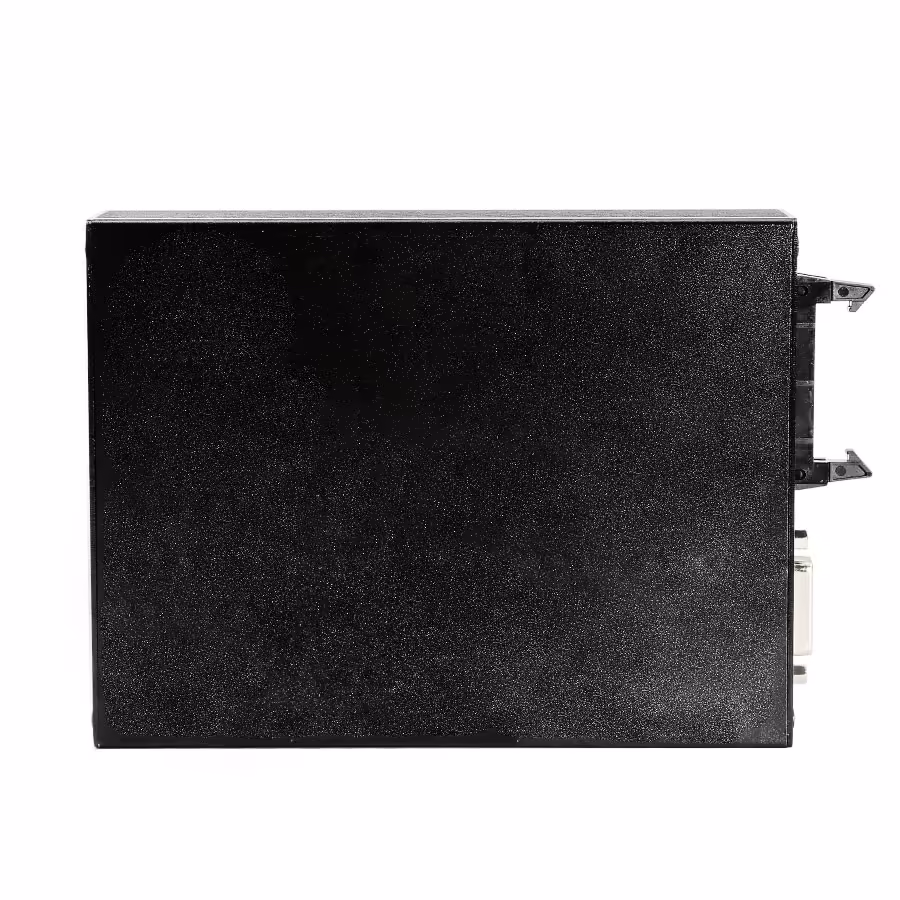

V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit
  • V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit


V2.23 KTAG ECU Programming Tool Master Version Firmware V7.020 with Unlimited Token Main Unit

Top 8 reasons to get KTAG V7.020:
1.With latest Firmware version: V7.020, Software version: V2.23
2.Supported Multi-Languages: :English French Portuguese Spanish Italian Deutsch
3.Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
4.Support both Car, Motorcyle and Truck ECU Programming
6.Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN
7. Add ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 100 more ECU Types added.
8. No tokens limitation

Notice: If you have bought KTM100 KTAG V7.003, you want to update to KTAG V7.020, You need to send back complete whole package for KTM100 to us, the update fees is 140USD,
Not including the shpping cost.

What's new with Ktag Master fw V7.020 sw V2.23?
-Many encrypted new car models works I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc.
-100+ ECU types added
-Software version: V2.23
-Hardware version: V7.020

Update: By CD or Download link only. (I can give you a link to download newest version of ktag software)

Using tips:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Tip (Very important): During operation, disable the internet connection; otherwise the software may get damaged.

KTAG Has Unlimited Tokens, We Add a Renew Button.

KTAG V7.020-1

How to reset the tokens?

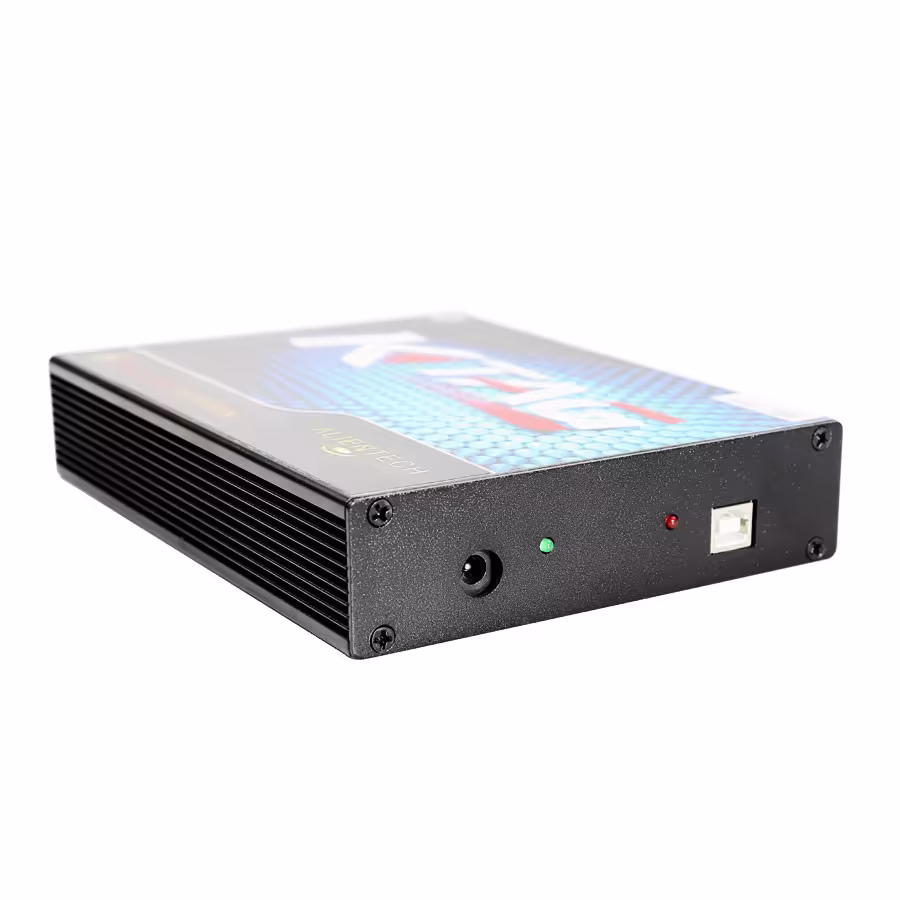

When the tokens use up, insert the USB into the computer and the red indicator flashes, then press the Reset button, wait until the indicator flashes off, unplug the USB cable and again
insert the USB cable to the computer, now you have 30 tokens.

Question: When I open the Ktag master V7.020 diagram, it displays in words not pictures.
Answer: In the diagrams, there are some words in different colors, click it you will see the diagram. (Take the following picture for example, click the blue “Here” you can see the
connection instructions)

Firmware KTAG V7.020 ECU Programming Tool-1
Firmware KTAG V7.020 ECU Programming Tool-2

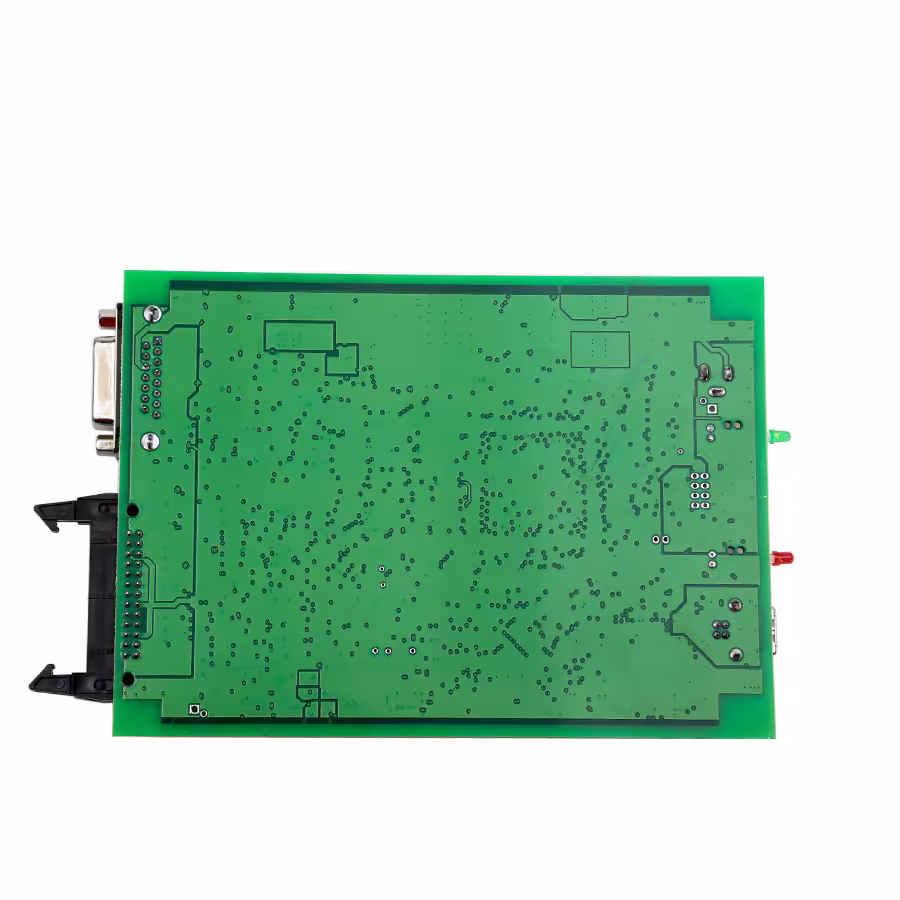

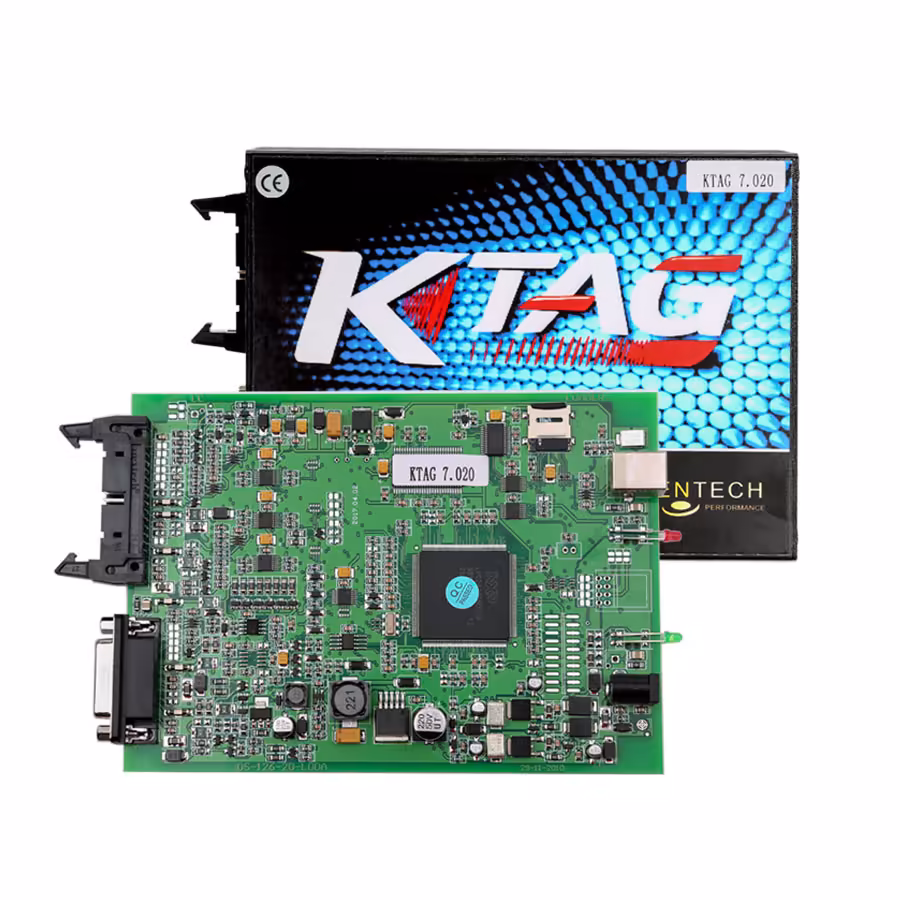

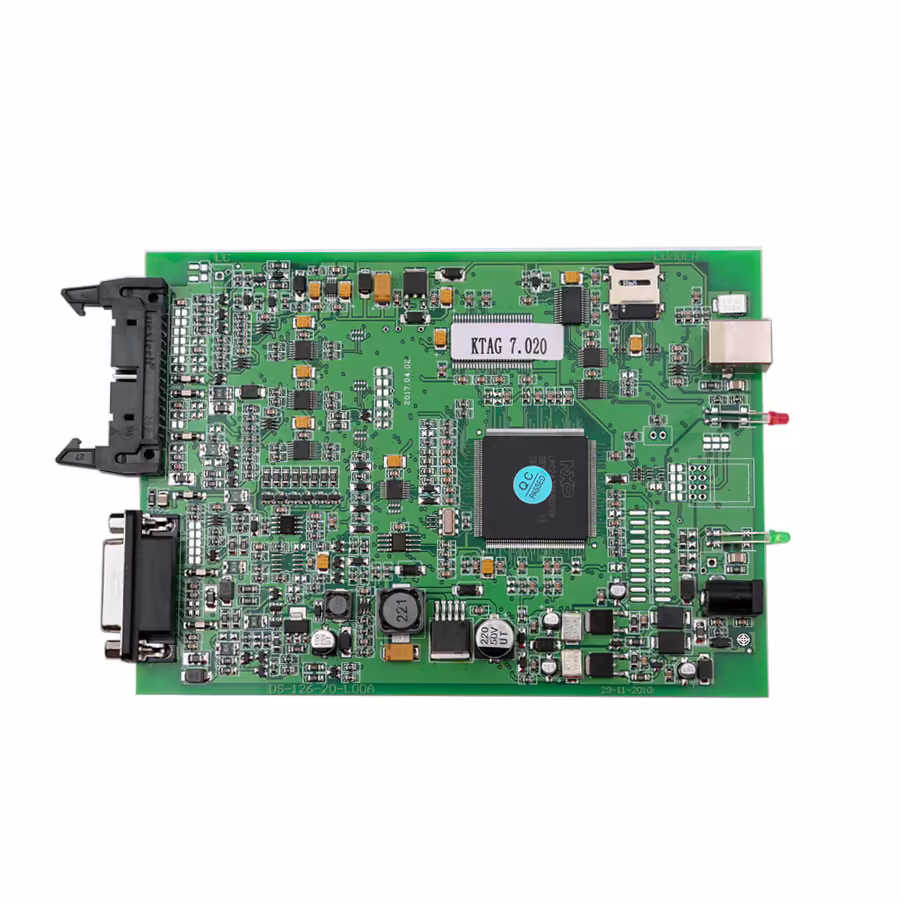

KTM100 KTAG PCB:

KTM100 KTAG PCB-1
KTM100 KTAG PCB-2


KTM100 KTAG Connection Picture Display:

Firmware KTAG V7.020 ECU Programming Tool-4
Firmware KTAG V7.020 ECU Programming Tool-5

Cables From Left to Right:

Firmware KTAG V7.020 ECU Programming Tool-6

1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H

V2.23 KTM100 KTAG Description:

The new KTM100 K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

V2.13 KTM100 K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

Package List:

1 x KTAG 7.020 Main Unit
