Xhorse VVDI RKE BOX is applied at the following aspects:1. To change the original straight remote control to folding remote2. No method or apparatus temporarily to add a new remote control3. Temporary replacement because of the original out of stock4. Only one remote for the original car (such as the Chinese, Besturn, etc.)5. To seek low-cost remote control instead of the expensive original oneNote: at least one original remote control for use of the kit
Item No. COBD23677History: 359 sold
Out of Stock
Price:
US$39.00/ piece
Discount Price:
US$26.00/ piece 33%
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details?
Returns:
Return for refund within 30 days, buyer pays return shipping.Read details ?
Support:
Online Chat Ask a question
VVDI RKE BOX Remote Control Switching Box
  • VVDI RKE BOX Remote Control Switching Box
  • VVDI RKE BOX Remote Control Switching Box
  • VVDI RKE BOX Remote Control Switching Box
  • VVDI RKE BOX Remote Control Switching Box
  • VVDI RKE BOX Remote Control Switching Box

VVDI RKE BOX Remote Control Switching Box

1. Wiring Description:

Remove the circuit boards in the original remote control, and connect to the main unit as the right picture shows (connect the white wire to buttons, red to the positive, black to the negative)
Note: 3 kinds of remote button: 2-feet, 4-feet and 5 feet buttons
4-feet and 5-feet buttons: no direction distinction, but it must be soldered at the diagonals
2-feet buttons: no direction distinction, and respectively solder the two feet
original remote control
positive
negative
remote wiring diagram

IMPORTANT: Do not reverse the power cord on the remote control

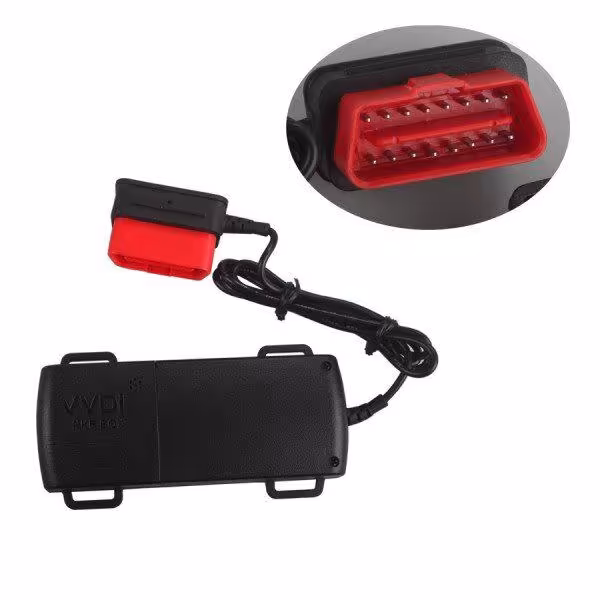

2. To get power via OBD or 12V constant power from the car

3. Key/ Remote Matching and Clearing

Matching Steps:
Press SET button on the Host box (in the internal hole at the side of unit), then the buzzer beep twice, to go into the matching state
Press any button on the new remote for a while until the buzzer beep continuously. Key matching is completed.
Repeat the previous two steps to add another new key.
Note:
Up to six keys to match for one Host box; the key matching will fail if more
In the matching state, the buzzer beeps once if the key cannot be detected for more than 10 seconds, and then automatically exit the matching state to go into the normal working state.

Clearing Steps:
Press SET button for a while until the buzzer beep continuously. All the keys matched previously are cleared and return to factory state
Note:
If the key is lost or not to use, you can erase all the keys and then re-add all lost keys to ensure safety.
Buzzer
Key to be added
SET button

4. To add the key embryo and anti-theft chip to the remote control

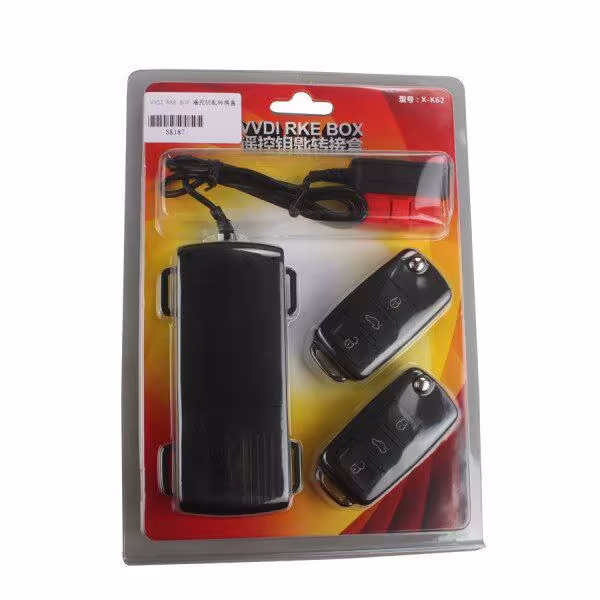

Package Including:

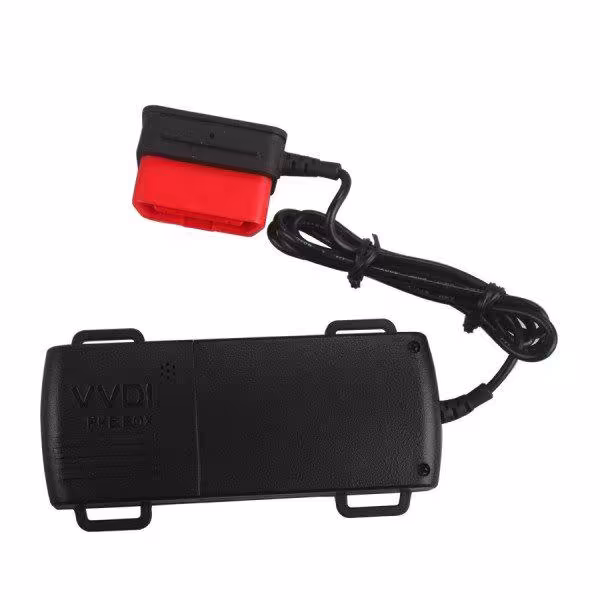

1pc x VVDI RKE BOX

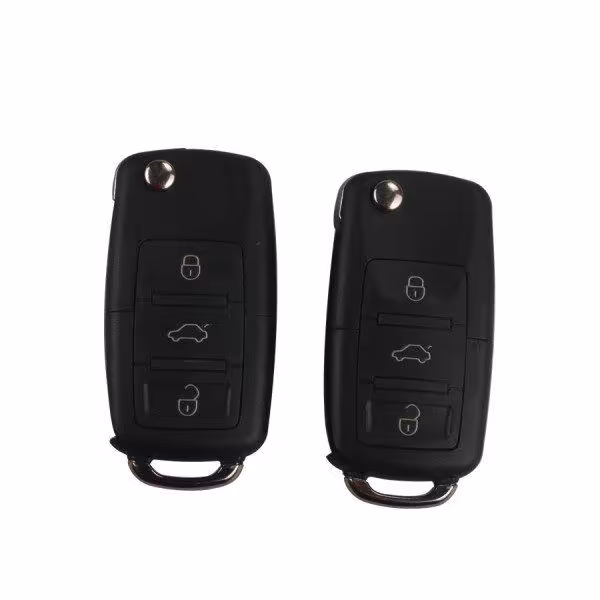

2pc x key
