Yanhua Mini ACDP Module6 MQB/MMC Instrument with Adapters

Yanhua Mini ACDP Module6 MQB/MMC Instrument with Adapters

Support parts of VDO mileage adjustment of VW MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
Please check on our official blog How to use Yanhua Mini ACDP do VW MQB & Passat MMC mileage correction

Yanhua Mini ACDP Module6 can update to gain the IMMO function now, while PCF-key Adapter will be necessary, please pay for it alone.
(PCF-key Adapter will be included in Module6 package as default since 14/1/2019. If you Module 6 bought before this time, still need to buy it alone.)
support MQB key programming when all keys lost with PCF-KEY adapter.

Support IMMO List:

A3: MQB 2014.06-
Q2: MQB 2014.06-
Seat Ibiza: MQB 2014.06-
Seat Leon: MQB 2014.06-
Seat Toledo: MQB 2014.06 -
Fabia: MQB 2014.06-
Octavia: MQB 2014,06-
Rapid: MQB 2014.06
Superb: MQB 2014.6 -
Golf: MQB 2014.6 -
Passat B8: MQB 2014.6 -
Polo: MQB 2014.6 -
Tiguan: MQB 2014.6 -
Touran: MQB 2014.6 -

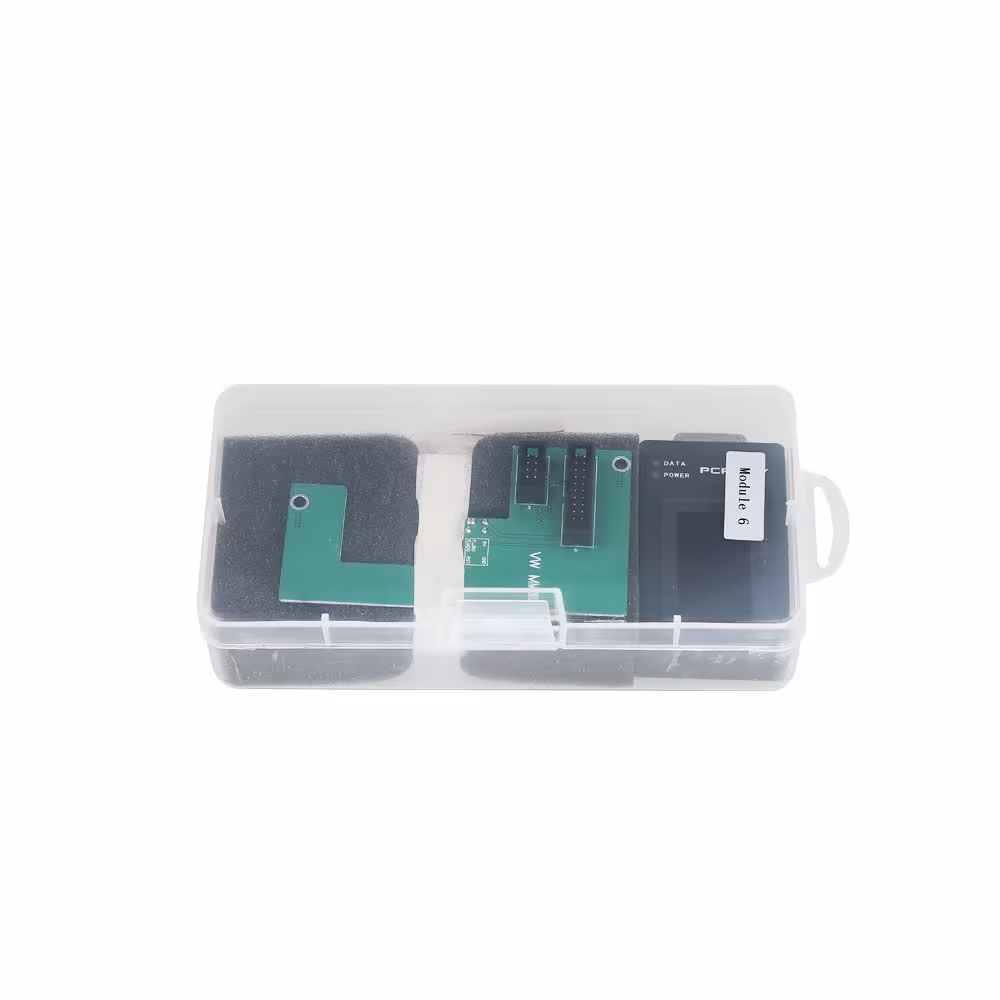

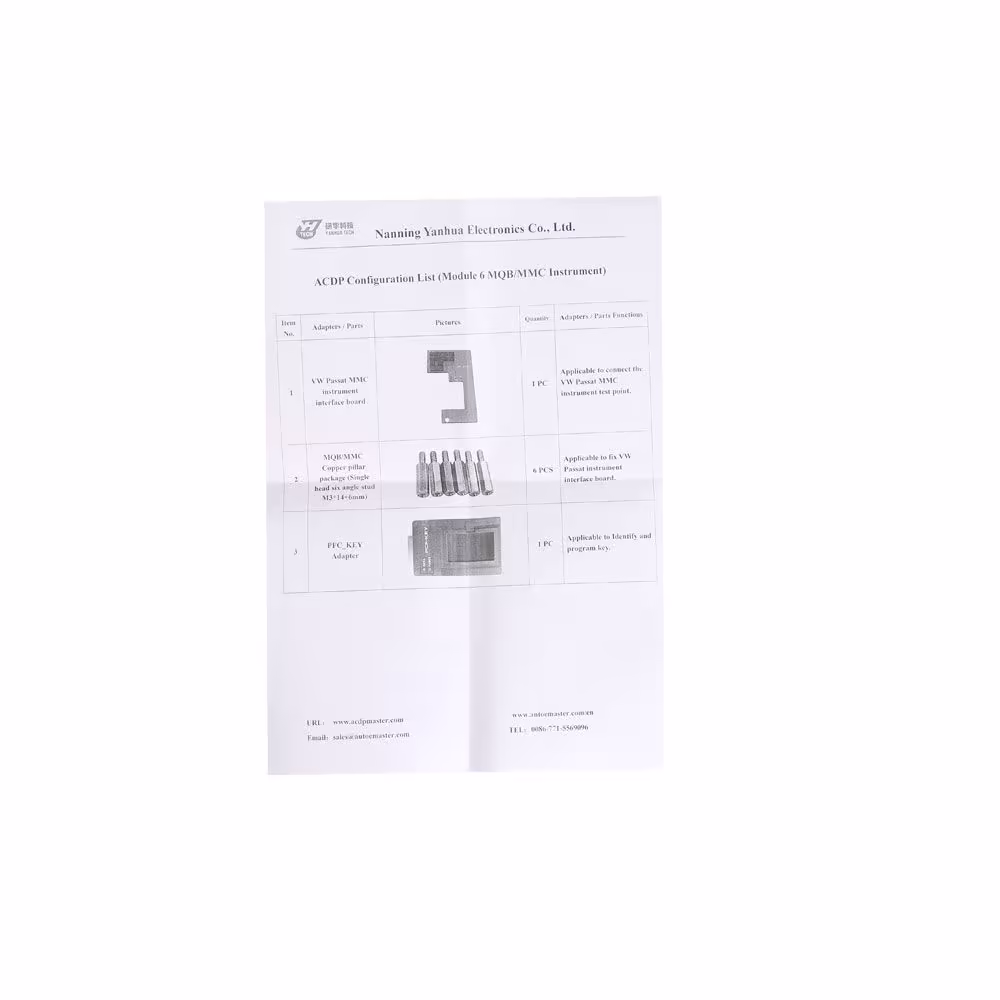

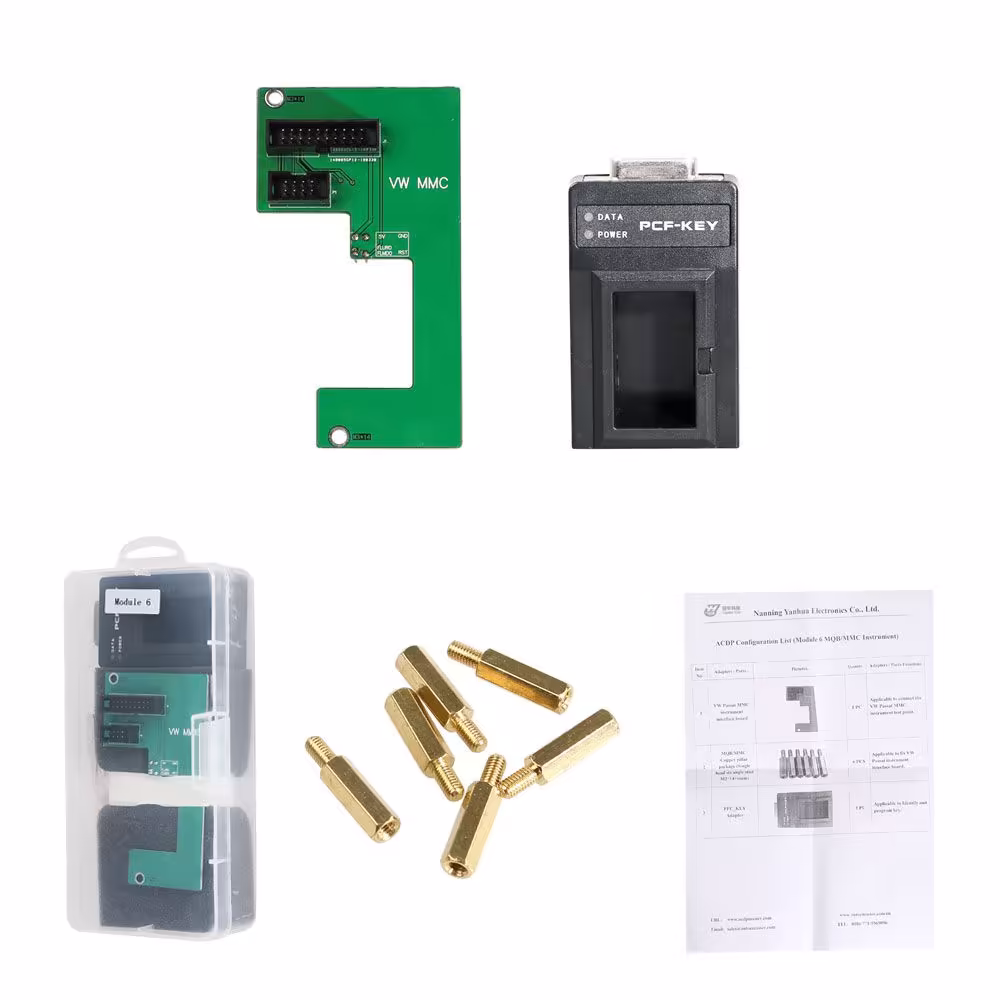

Yanhua Mini ACDP Module 6 Adapter List:

Item No.	Adapters / Parts	Pictures	Quantity	Adapters / Parts Functions
1	VW Passat MMC instrument interface board		1pc	Applicable to connect the VW Passat MMC instrument test point.
2	MQB/MMC Copper pillar package (Single head six angle stud M3*14+6mm)		6pcs	Applicable to fix VW Passat instrument interface board.

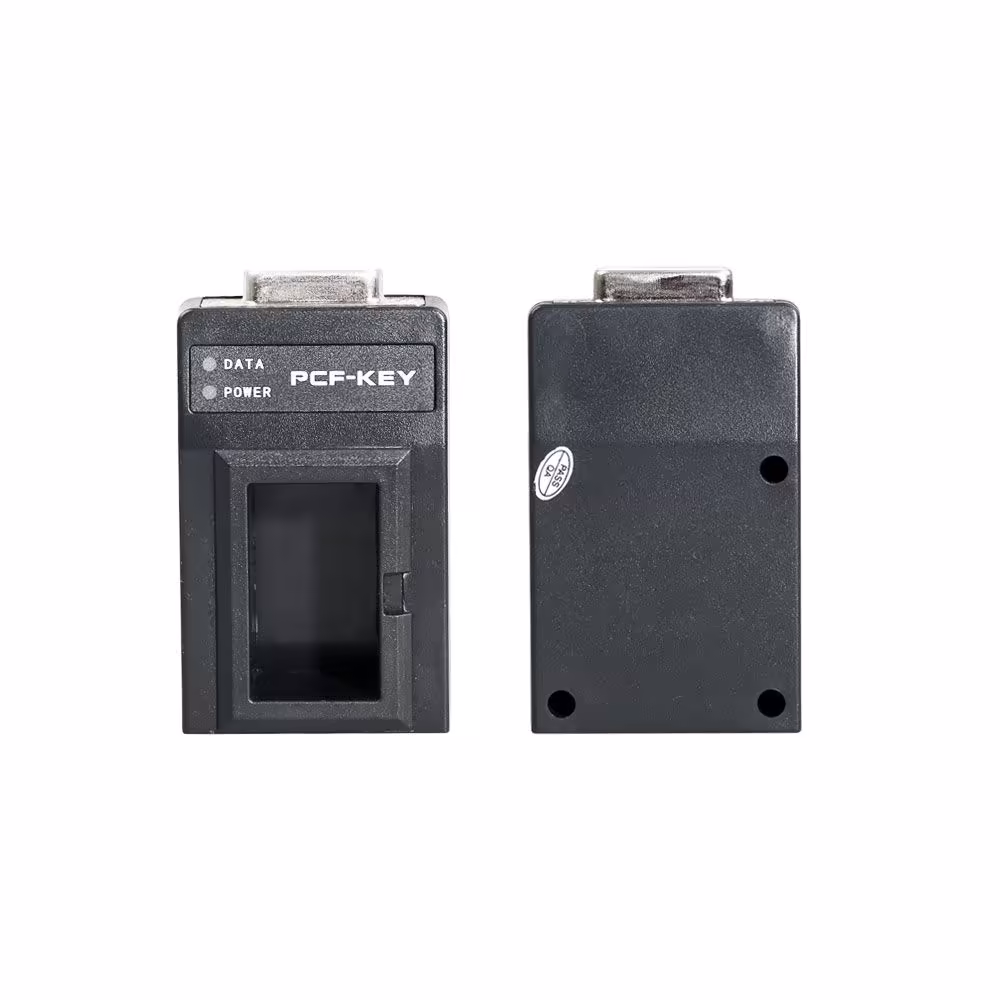

3	PCF Key Adapter		1 pc	for VW MQB IMMO Key Programming
